Another of the many PCF 40's that
have been completed from
our boat plans and are now in service worldwide.
ABOVE & BELOW: These are
two different PCF 40's ... Similar layout !
|

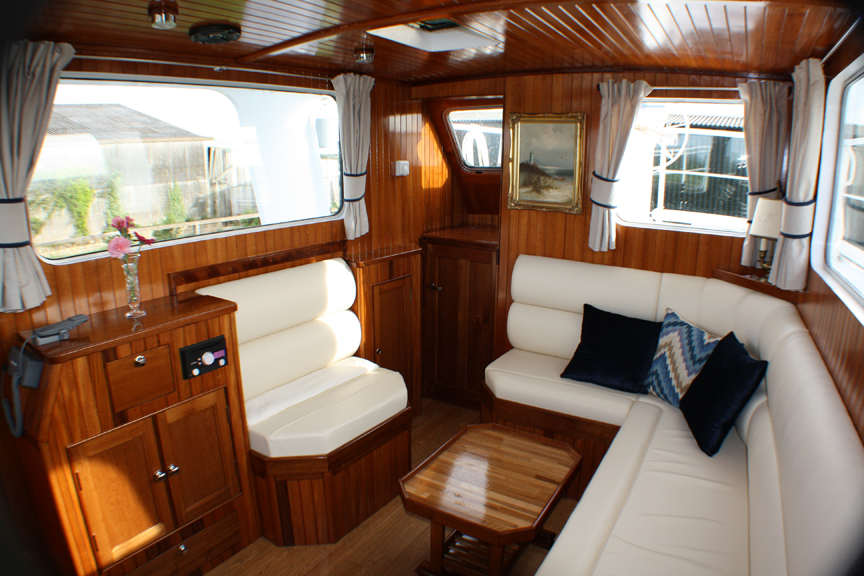

Interior of the PCF 40 built for
Berke Kardes in Turkey.
Down below are two sleeping cabins plus shower and
head.
BUILDER: Kaya
Cakar Asboat Yacht Building Ltd İzmir, Turkey + 902323274006
|
|
PCF 40 - There are over 200 built and in
service world-wide. This design may be built as a motor sailer for
family use, or, by adjusting the wheelhouse position, by the
professional for fishing or trawling.
It has a large fuel and water
capacity plus space for a deep freezer. Being of full displacement
it is also an economical passage maker and is quite capable of
crossing oceans safely and surely.
It can be built in either steel
or fiberglass ....
One PCF 40 recently motor sailed from Australia to UK and on to
Ireland !
Hello Bruce, Just to keep you posted.
We are the proud new owners since early September 2015 of the PCF
40 of Claude Charland that you show on your site.
The boat is
in steel, and was built in Quebec in 1979. The Engine was is a
new John Deer 80 HP installed in 2002, with very few hours to date.
I owe a big respect to Claude Charland the previous owner who sold
it to us for the fantastic restauration work that he did by himself.
Here attached are some pictures showing the beautifull quality of
work. Pictures 2 and 3 is the way she was 3 years ago. All the other
pictures is the way she looked went we bought her.
We plan to take her on part
of the American Great Loop, starting this June.
We are so happy, beautiful Design that we have searching for years.
Flavio Patuelli |
|
|
NEW !
SUPER
STUDY BOAT PLANS.
Delivered by DOWNLOAD to your computer.
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!
Lists
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN BOAT
..
Please note that when you receive your credit or
debit card statement the amount will be converted to YOUR local currency.
(
NOTE: The study plans include many more photos of this design.)
STUDY
PLANS PCF40
(ALL VERSIONS)
STEEL, ALUMINUM,
FIBERGLASS
£69.00
- $85.00
- €79.00
To order STUDY PLANS go to
SPECIALS PAGE
and click on
€79.00
BUY NOW BUTTON
|
PECIAL
OFFER - ANY THREE STUDY PLANS FOR
€114.00 - $125.00
- £95.00
CLICK HERE TO LEARN MORE
STEP BY STEP ASSEMBLY
PHOTOS INCLUDED WITH ALL
STUDY PLANS
|
|
| L.O.A. |
12.19 m |
40' 0" |
| L.W.L. |
10.67 m |
35' 0" |
| BEAM |
3.97 m |
13' 0" |
| DRAFT |
1.30 m |
4' 3" |
| DISPLACEMENT |
14,061 kg |
31,000 lb |
|
 |
Roberts PCF. 40
Boat Plans for Fiberglass
construction or Steel or
Aluminum cutting files and boat plans.
The PCF 40 is
one of my favourite boats and makes an ideal family motor sailer. The hull
is based on a trawler design that we built in the 1970's and as with all
well designed trawler hulls - this is a great sea boat.
Note that the PCF 40
will accept a variety of rigs. This is a well proven trawler hull that
can cross oceans !
PCF CUTTING FILES AND PLANS.
Dear Bruce, you are great and so fast!
Whenever we will put the keel and start, you will be receiving pictures
immediately. My builder has a Web cam system at his site, and i Will be able
to watch 7/24...Best regards, Berke Kardeş.
Berke's PCF 40 is now completed and you can see many photos of this fine
example when you order the STUDY PLANS for this design.
|
|
|
Roberts PCF. 40
Boat Plans for fiberglass or Steel or
Aluminum cutting files and boat plans.
This is the
original accommodation plan.
|
 |
Roberts PCF. 40
Boat Plans for fiberglass or Steel or
Aluminum cutting files and boat plans.

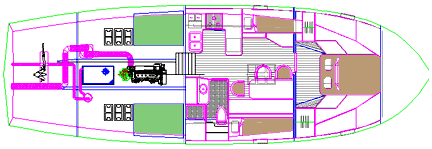

This is the
accommodation plan we have prepared for the new steel STEEL OR ALUMINUM PLANS & CUTTING FILES version. You can
vary the layout to suit yourself.
|
|
 |
Roberts PCF. 40
Boat Plans for fiberglass or Steel or
Aluminum cutting files and boat plans.
This is an
optional aft cabin added to the original accommodation plan.
HI Bruce,
I would like to say that as a total amateur I found the whole experience a
very rewarding project with result
that is a boat at a fraction of what she would have cost built by others.
Hopefully she will also give my wife and I many years of happy
boating.
The professional help was limited to a minimum but what was done
professionally was the welding together of the STEEL OR ALUMINUM PLANS & CUTTING FILES in a Kent boatyard,
The
design and install of the rig and the same for the sails. Apart from that
my wife and I did everything ourselves. Sorry no, we had the upholstery
professionally done as well. All the very best and thank you for your
interest.
We have found our Absolutely fantastic. My wife and I really are living the dream.
When we sailed her from the east coast round to our berth on the river
Exe, about 300 miles, our skipper, a very experienced sailor, commented
many times what a great boat she was.
He made the comment one day that
although he wouldn’t do it by choice, if he were caught out in a force 9
at any time he would be confident of the boats sea keeping abilities to
get home safe and sound.
Best regards Keith.
|
 |
Roberts PCF. 40
Boat Plans for fiberglass or Steel or
Aluminum cutting files and boat plans.
Bruce, looking through your web site I had a
pleasant surprise to find my PCF 40 photo's shown. If for any reason you
would like further information or photo's please do not hesitate to contact
me.
I recently, (Easter 2006) spent 5 days on board "MOJO II" heading towards
Townsville, 25 to 30 knot wind and 2 to 3m
seas, and she handled it with ease.
I have found the boat very sea worthy and
economical after travelling from Sydney to the Whitsunday's ( about 1200 nm
) where it now resides, and is used for family holidays. Warren
Goddard |
|
Roberts PCF. 40
The PCF 40 is
flush deck forward making for easy anchor handling and plenty of space to
stow the dinghy etc.
Hi Bruce,
I recently purchased a PCF40 after
recovering the boat from a reef on Guam, where it had been aground for about
6 years. We are in the process of bringing her back to sea worthy condition.
The boat's name is the Pearl.
She was originally built in Papua New Guinea in 1978 and has crossed
the Pacific four times over her past life.
She was
used primarily as a small cargo transport between the Pacific Islands.
I don't have the original drawings or specs
on the boat (other than what's on the website). All of the paperwork,
manuals, and it looks like the original boat plans were lost when she went
aground.
What I'm looking for is info on the design water line and
recommended ballast weight and placement. Is this information available on
line or will I need to purchase the full set of boat plans
Bruce replies: WE SENT A SET OF boat plans WITH OUR COMPLIMENTS !
|
 |
Roberts PCF. 40
Another PCF 40 this one owned in Canada by Claude Charland
|
 |
Roberts PCF. 40
Boat Plans for fiberglass
or Steel or Aluminum cutting files and boat plans.

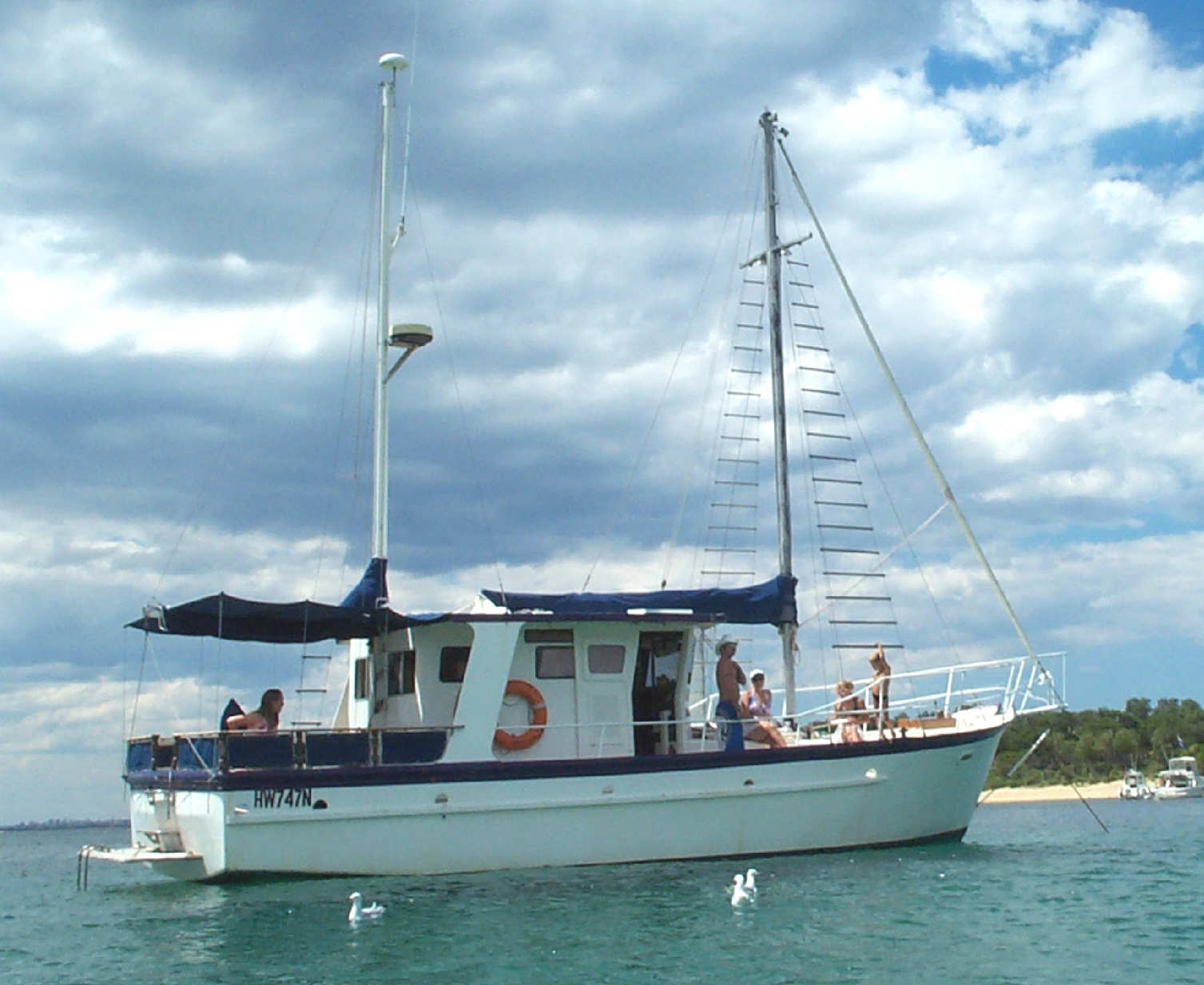

Australian Built PCF 40 - This boat was
built at our Marine Park boat-yard back in the 70's - the boat is still in
service and in recent years has commanded a good re-sale value.
|
 |
See larger version
TRAVELER 45
STEEL OR ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES or
CUTTING FILES & boat plans.
Other sail boat plans are available - what do YOU want in the way of a rig ? |
 |
TRAVELER 45
STEEL OR ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES or
CUTTING FILES & boat plans.
This Traveler
45 is being built in Nova Scotia Canada, |
|
SPECIAL INTRODUCTORY OFFER:
COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS
OR
CUTTING FILES
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The plans have
all the information you need to build your own boat..
Each plan contains all the construction
drawings for
STEEL
or ALUMINUM ( Cutting files ) or
( Plans and Full size frame patterns FIBERGLASS ) construction, plus bonus drawings covering
electrical, plumbing and engineering, everything you need to build your
boat.
Plus you will receive a DETAIL FOLIO showing how to make many of your
own boat fittings, lists
of materials and equipment are all included plus all technical information,
numerous
construction drawings and written building instructions are all included.
You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN SAILBOAT
..
Only available at this price if you order off this page.
PLANS & PATTERNS
(FIBERGLASS)
PCF 40
REGULAR PRICE €695
SPECIAL OFFER €195.00
To order the PLANS & FULL
SIZE PATTERNS go to
SPECIALS PAGE
and
click on
€195.00
BUY NOW BUTTON
Your plans and FULL SIZE PATTERNS
will be sent to you by DOWNLOAD
to your computer.
PLANS &
CUTTING FILES PCF 40
(Steel or Aluminum)
REGULAR PRICE €`1,595
SPECIAL OFFER
€795.00
To order the PLANS &
CUTTING FILES
go to
SPECIALS PAGE
and
click on
€795.00
BUY NOW BUTTON
Your plans and CUTTING FILES will be sent to you
by DOWNLOAD
to your computer.
|
|
