NEW ! SUPER STUDY BOAT PLANS:

Delivery timing and format are confirmed by Bruce Roberts USA after ordering. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains

ALL the construction drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN BOAT.





STUDY PLAN  EURO 1600 FISHER + EURO 1180 FISHER

EURO 1600m  Fisherman / Workboat

STEEL OR ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES OR CUTTING FILES

EURO 1180m Fisherman / Workboat

STEEL OR ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES OR CUTTING FILES

FISHER 88 - 26.82m Fisherman / Workboat

FIBERGLASS - Boat plans & FULL SIZE PATTERNS.

These boats can be arranged to suit your own requirements. Email Bruce to discuss for details.
  EURO 1600 FISHER EURO 1180 FISHER FISHER 88
LOA 53'   09"   16.37m 59'  00"    18.0 m 88'  00"    26.82 m
LWL 45'   06"   13.88m 52'  10"   16.1 m 83'  06"   25.45 m
BEAM 17'   09"   5.47m    18'  02"    5.5 m 23'  00"    7.00 m
DRAFT 4'    00"     1.20m 6'    07"    2.00m 7'    10"    2.41m

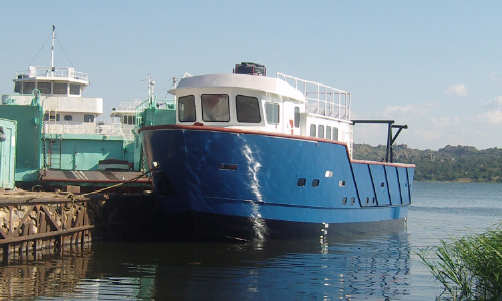

EURO 1180
Fisherman / Workboat

This example is one of several Euro 1180's that was built from steel STEEL OR ALUMINUM PLANS & CUTTING FILES supplied to the builder in Tanzania


EURO 1600 - 1180
Fisherman / Workboat

The general layout of this boat can be varied to suit your requirements.
EURO 1600 - 1180
Fisherman / Workboat

This is one of the first Euro 1600 hulls that was assembled from one of our steel STEEL OR ALUMINUM PLANS & CUTTING FILES & the layout can be varied to suit your particular requirements.


EURO 1600 - 1180
Fisherman / Workboat

The arrangement shown here may be changed to suit the layout best suited to your particular usage of this design.


EURO 1600 - 1180
Fisherman / Workboat

The necessary calculations have been performed to allow for crane to be installed as shown - other deck layouts are possible.
EURO 1600 - 1180
Fisherman / Workboat

The layout shown here is suitable for charter or sardine fishing in the Mediterranean. This layout can be varied to suit your own requirements

FISHER 88 - 26.82m
FIBERGLASS - Boat plans & FULL SIZE PATTERNS.
Fisherman / Workboat
