Boat plans Roberts Coastworker 35 fishing work boat

BUILD "BETTER FOR LESS" WITH BRUCE ROBERTS BOAT
SEE - WHAT'S NEW !

Bruce Roberts-Goodson
EMAIL

Here we see several fiberglass Coastworker 40's that were built in Tanzania for the local Enviroment Management Agency.

The Bruce Roberts cheap mold construction methods are ideally suited to small to medium series production

EURO 1200 COAST WORKER
VERSION A (Steel or Aluminum Cutting files) SEE MORE

EURO 1200 COAST WORKER - (Steel or Aluminum Cutting files) SEE MORE
Modified VERSION A built by Shipyard Trico B.V. in The Netherlands

SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for each material STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan! Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE Ł69.00 )

e-book BUILD YOUR OWN POWER BOAT. STUDY PLAN C35-37-40 .. Ł59.95 - us$94.75 - €84.75

SPECIAL INTRODUCTORY OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The plans have all the information you need to build your own boat.. Each plan contains all the construction drawings for STEEL OR ALUMINUM OR FIBERGLASS construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat. Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE Ł69.00 )

e-book BUILD YOUR OWN POWER BOAT .. Only available at this price if you order off this page ....

COASTWORKER 35 / 37/ 40 SEE ALL SIZES OF WORKBOATS
Boat plans & Frame patterns available for STEEL / ALUMINUM / FIBERGLASS

Already over 250 of this design have been completed and are in service world-wide. The boat plans and frame patterns are easy to follow and you can build this boat in FIBERGLASS, STEEL or ALUMINUM. These designs have either a semi-displacement or planing hull and can be built as a family cruiser or as a rugged work boat. The chine hull has provided an excellent overall hull shape and plating has been calculated to provide easy construction with minimum wastage.

This design was prepared for operators in the North Sea and therefore the boat had to a rugged and safe sea boat. Amateurs with welding experience should have no problems building this vessel in STEEL or ALUMINUM using the full size frame patterns which come with the boat plans, and the straight forward, step by step instructions. If you choose FIBERGLASS construction then virtually anyone with the very minimum of hands on DIY experience can ( and already have) built this boat.

Depending on which material you want to use to construct your Coastworker and what performance you have in mind then you should order the boat plans in the following configuration .. here are the options:

1. Coastworker 35 or 37 or 40 semi-displacement STEEL 10 - 12 knots
2. Coastworker 35 or 37 or 40 planing hull STEEL 20 - 25 knots
3 Coastworker 35 or 37 or 40 planing hull ALUMINUM - 35 knots
3. Coastworker 35 or 37 or 40 planing hull FIBERGLASS - 35 knots
4. Coastworker 35 or 37 or 40 semi-displacement FIBERGLASS 10 - 12 knots

Please specify preference when you order the boat plans and full size frame patterns.

COASTWORKER 35 - Steel, Aluminum or Fiberglass	POWER	135 - 450 Hp
LOA	35' 0"	10.66 M
LWL	29' 10"	9.10 M
BEAM	12' 8"	3.84 M

COASTWORKER 37 Steel, Aluminum or Fiberglass	POWER	135 - 450 Hp
LOA	'37' 0"	11.28 M
LWL	32' 0"	9.75 M
BEAM	12' 8"	3.84 M

COASTWORKER 40 Fiberglass ( NEW VERSION )	POWER	2 X 200 HP - 2 X 315 Hp
LOA	40' 0"	12.00 M
LWL	35' 0"	10.67 M
BEAM	13' 9"	4.19 M

	COASTWORKER 35 / 37 / 40 See above for the variety of versions for this design.
	COASTWORKER 35 / 37 / 40 You can extend the cabin aft if you want to make this into a family power cruising boat .. See above for the variety of versions for this design.
	COASTWORKER 35 / 37 / 40 Pleased to see the COASTWORKER 35 / 37 stretched to 39ft Coastworker Matador... on your website the interesting thing is that she is towing. This was a special barge built in 70 days by Masters Ship-yard 250 tonne deadweight to carry a 850 tonne cracker tube to the Cochin refinery . the biggest heavy lift in India. It was Shipped from China. Was off-loaded from a heavy load ship in cochin harbour onto the barge and then moved some 25 kms by inland waters to a jetty some 8 kms from the refinery. This saved some 5 years of negotiations and expense of road widening. Masters and Lots Shipping are the local experts at this. Capt Phillip of Lots Shipping can expand on this. The Matador , has not stopped work for more than two days since commission. I am certain more will be built. South India is a coming scene. The next Yacht will be the 345 in 4mm. More boats 35/37/39 are on the agenda. Regards Bryan Thurlow

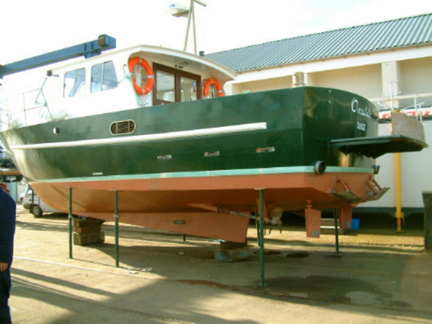

	COASTWORKER 35 / 37 / 40 This Coastworker 35 was built in the UK
	COASTWORKER 35 / 37 / 40 Note the trim tabs fitted to this Coastworker 35. This arrangement will always improve performance in especially in planing hull powerboats. This boat was built in the UK
	COASTWORKER 35 / 37 / 40 Fiberglass Coastworker 37 lifted out of the mould. Note the plywood mould on the right of this picture
	COASTWORKER 35 / 37 / 40 FIBERGLASS or STEEL or ALUMINUM plans and full size patterns. PHOTO: Another of the many Coastworkers in service around the world
