ROBERTS 370
- MULTI CHINE version built in FINLAND.
This boat has cruised the NORTH
WEST PASSAGE - NO MEAN FEAT !!
ROBERTS 370
- WOOD EPOXY built in South Australia.
Hi Bruce,
Firstly
the boat has given us a great deal of pleasure and yes she sails very
well. Our first real shake down cruise was a trip accross the gulf in
conditions which were forcast to be 25 to 30 knots. we very soon after
found that the conditions were not as to be expected. the majority of
the trip was in conditions of 35 to 40 knots blowing from the SE on our
port stern quarter.
She
really powered along with no vices at all. The depth soon shallowed as
expected so were surfing 2.5 to 3 mtr waves. when we reached our
destination it was just to risky to attempt to anchor in the haven we
wanted so went back to sea and spent the night riding it out. Her
performance was very impressive.
Thank you for a great boat,
Graham and Shirley.
|
ROBERTS 370
- STEEL built in Victoria Australia.
|
|
|
NEW !
SUPER
STUDY BOAT PLANS ...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!
Lists
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN BOAT.
STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH THE
STUDY PLANS
& COMPLETE PLANS
|
ROBERTS 370
Fiberglass - Steel -
Aluminum -Wood / Epoxy
Such has been the response
to this design that boat plans for it's construction are available in steel, aluminum,
FIBREGLASS and Wood Epoxy. There is also the choice of constructing the hull in either
radius chine, multi chine or round bilge.
Designed as a performance cruiser, this boat has
proven itself both in club racing and long distance cruising. Over 500 Roberts 370's have
already been completed and several have sailed around the world.
There are several versions of this design as
you will notice below. Besides giving you the choice of building this design in either an
aft cockpit, center cockpit or pilot house configuration you may also chose between a
cutter, sloop or ketch rig. She has proven to perform well with either sailplan.
There are several shoal draft and deep keel options to choose from as well. |
| L.O.A |
11.32 m |
37'
2" |
| L.W.L |
9.66 m |
31'
8" |
| BEAM |
3.76 m |
12'
4" |
| DRAFT |
Shallow |
1.45 m |
4'
9" |
| |
Deep |
1.98 m |
6'
6" |
| DISPLACEMENT |
8,512 kg |
18,750 lb |
| BALLAST |
3,632kg |
8,000 lb |
| AUX. PWR |
|
20 TO 33 hp |
|
 |
ROBERTS 370
This boat was built in Turkey and you
can see that the builder did a nice job of building from our boat plans and frame
patterns.
Dear Bruce, Mr
Veli Kärkkäinen from Finland got plans of
Coaster
36 from you about 5 – 6 years ago.
The construction
works have been interrupted for some years, because
Kärkkäinen circumnavigated the North
Pole during the years 2011-14 with his sailing yacht “Lena” ( a Bruce
Roberts 370 off cpourse). The situation of today is on the
photo annexed.
|
|
 |
ROBERTS 370
Another view of this boat built in
Turkey
|
|
 |
ROBERTS 370
accommodation plan of the boat shown
above
|
|
 |
ROBERTS 370 C
There are several alternate sail boat plans including
sloop (shown) or ketch or cutter etc. |
|
 |
ROBERTS 370
One of several possible layouts is
shown here; all layouts are shown in the boat plans and study boat plans. |
|
 |
ROBERTS 370 C You
probably have enough of this model but thought I would offer your design
Roberts 370. My name is
Oddvar Anfinset.
The photo was taken in Gothenburg Harbour Sweden. |
|
 |

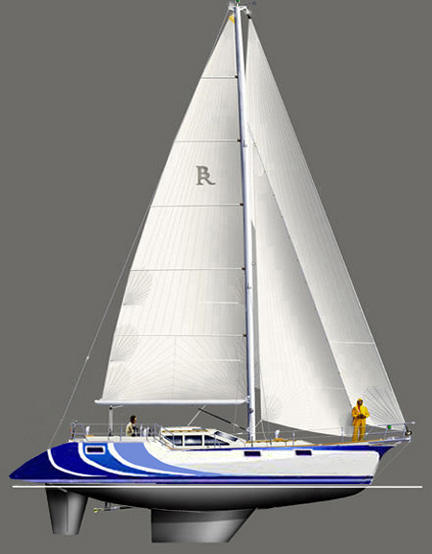

ROBERTS 370

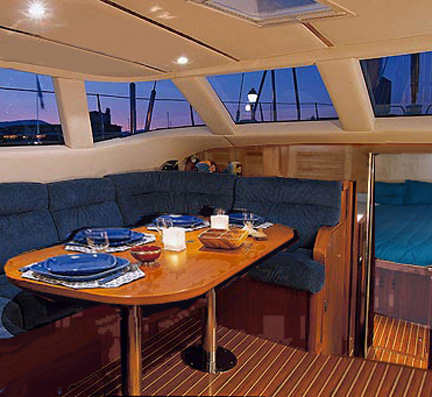

Will Smith Custom Roberts 370 - Dinette in Pilot house |
|
 |
Roberts 370 version - Inspired by our customer Will Smith - STEEL OR ALUMINUM PLANS & CUTTING FILES can be
customized too ! |
|
 |
ROBERTS 370 C Here is one of Your 370Cs near the
Adriatic coast (Croatia). Since You were so nice to re-send me "The metal
boats", I decided to Thank You with the picture I really like.
She has a registered
top speed of 12 kts, and has been built in Zagreb, Croatia eight years ago.
Best regards, J. Palcic
Dear
Bruce, I am glad to communicate
you in case of the 20-th anniversary of my HELIOS – Robert's 370
launching - June 22, 1993. It was a great adventure to build myself such
a boat, and it is still a great pleasure to sail it.
In the past 20 years we had lot of
traveling
at Adriatic sea and Mediterranean, but didn't realized my initial
goal – around the world trip, due to the crazy war in Croatia.
Your design is really GREAT, and I would reccomend it to
anyone dreaming to sail !
Included are some photos
– from the beginning, up to present days. Would be very glad to offer you a
sailing trip around Dalmatiam coast. Many thanks & best wishes to you - on
the land and at the sea !
Sincerely :
Konstantin Kostov, sculptor Sibenska
9j, 23000 Zadar Croatia |
|
 |
ROBERTS 370 D
This pilot house
version also available as a pre-cut STEEL OR ALUMINUM PLANS & CUTTING FILES
|
|
 |
ROBERTS 370 D
Note the different keel options shown in the
drawing on left. |
|
|
NEW CUSTOM
FEATURE:
SAFETY SKEG IS
AVAILABLE ON THIS BOAT.
The Roberts safety skeg is designed to take the best features
from the LONG FIN / SKEG combination and add a SAFETY FACTOR. Many of
you may be aware that skegs in general are vulnerable to damage so here is
our answer to this problem.
EMAIL Bruce to more details of
this development. |
|
|
ROBERTS 370 A accommodation plan of the boat shown
above
|
 |
Roberts 370 E
This Radius Chine, Aluminum
Roberts 370 E was built in Australia
|
|
SPECIAL INTRODUCTORY OFFER:
COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS
...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The plans have
or
all the information you need to build your own boat..
Each plan contains all the construction
drawings for
STEEL
& ALUMINUM
or WOOD EPOXY or FIBERGLASS
construction, plus bonus drawings covering
electrical, plumbing and engineering, everything you need to build your
boat.
Plus you will receive a DETAIL FOLIO showing how to make many of your
own boat fittings, lists
of materials and equipment are all included plus all technical information,
numerous
construction drawings and written building instructions are all included.
You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN SAILBOAT
..
Only available at this price if you order off this web site.
C 0MPLETE
PLANS & PATTERNS
ROBERTS
370
STEEL, ALUMINUM,
FIBERGLASS. WOOD EPOXY
£895 - us$1,195
- €995 - A$1,195
PLANS & PATTERNS EMAILBRUCE
