NEW ! SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat. Each STUDY PLAN contains ALL the construction drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan! Lists of materials - Technical information - Numerous construction drawings are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE Ł69.00 ) e-book BUILD YOUR OWN BOAT. STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH THE STUDY PLANS & COMPLETE PLANS

Roberts SPRAY 460 - Plans and cutting files.
Boat plans include Gaff rig . Bermudian rig . Junk rig

NEW: TWO VERSIONS NOW AVAILABLE AS STEEL OR ALUMINUM PLANS & CUTTING FILES - A & C.

STEEL OR ALUMINUM PLANS & CUTTING FILES....BIGGER, BETTER offshore cruising pilot house sail boat. The Spray 460 is longer plus the beam has been increased to maintain the proportional beam of the other proven Spray designs, this greatly increases the livable interior space and allows wider side decks. This boat sails more upright as is the case with the other Spray designs which rarely exceed 10 degrees of heel ... you family will love this feature.

There are over 5,000 Sprays already sailing world wide plus over 1,000 currently being built from our boat plans and STEEL OR ALUMINUM PLANS & CUTTING FILES. We have been willing to listen to every combination of idea's about this wonderful boat and several layouts have been drawn. Many of these features are interchangeable between the various versions.

This boat is designed in accordance with Lloyds for category 1 (unrestricted operating / sailing area), which is much better than the EU and other Classification Societies and the CE-A require. Complete stability calculations are included in the design package. All calculations are also cross referenced against ABS requirements to ensure that the design meets world-wide standards and specifications.

In the case of STEEL OR ALUMINUM PLANS & CUTTING FILES, all plate parts belonging to the hull, deck and superstructure that are accurately cut to size are included. The parts are marked with the appropriate part number and engraved matching marking lines to assist in the assembly and location of the part in its position. Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth edges.

Plate parts are cut from Lloyds approved A Grade Shipbuilding quality STEEL that has been coated with factory applied Sigma weld MC welding primer. We use and recommend steel plate that has the official designation ISO standard 10474 or EN 10204 with 3.1.B certificate.

Many of these Sprays have completed complete circumnavigations some more than once & usually with crews consisting only of two persons !

Check out our e-book BUILD YOUR OWN SPRAY for details.

L.O.D.	14.05 m	46' 1"
L.W.L.	11.48 m	37' 8"
BEAM	4.75 m	15' 8"
DISPLACEMENT	18,144 kg	40,000 lb

	SPRAY 460 A Cutter rig shown - Several alternate rigs are available for the Spray 460 See study boat plans for all alternate rigs and accommodation layouts.
	SPRAY 460 A Spray 460 A - Aft cockpit - Pilot house accommodation layout
	SPRAY 460 A Spray 460 assembled from one of our STEEL OR ALUMINUM PLANS & CUTTING FILES by Mike and Pam Ford in Dubai NOTE: We now have an excellent set of construction photos plus many photos of completed Sprays that are available with the STUDY PLAN PACKAGES.
	SPRAY 460 C Cutter rig shown - Several alternate rigs are available for the Spray 460 See study boat plans for all alternate rigs and accommodation layouts.

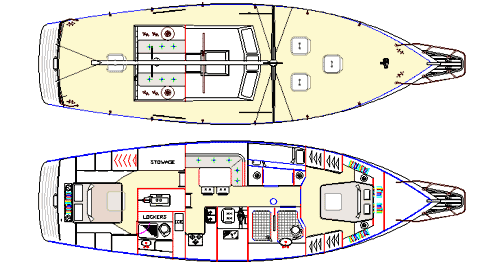

	SPRAY 460 C Accommodation for Center cockpit - poop stern or aft trunk cabin - pilot house
	SPRAY 460 A Spray 460 assembled from one of our STEEL OR ALUMINUM PLANS & CUTTING FILES by Mike and Pam Ford in Dubai ALL STUDY PLAN PACKAGES ON DOWNLOAD or on USB GIVE ACCESS TO HUNDREDS OF BOAT & STEEL OR ALUMINUM PLANS & CUTTING FILES ASSEMBLY PHOTOS
	SPRAY 460 A Spray 460 assembled from one of our STEEL OR ALUMINUM PLANS & CUTTING FILES by Mike and Pam Ford in Dubai
	SPRAY 460 A Spray 460 assembled from one of our STEEL OR ALUMINUM PLANS & CUTTING FILES by Mike and Pam Ford in Dubai. Recent email for Spray 460 builder in RUSSIA. Bruce HELLO! I finished the assembly of the boat! I worked from January 2 to February 20, 5 days a week, 3 people. Your project is excellent! No errors! Photos can be seen https://www.facebook.com/yachtadelta All Russian sailors looked for the building! Thank you for your project. Andrey
	One of Hundreds Spray's now sailing worldwide ... This one built in Riga Latvia
	Roberts SPRAY "Shiloh"

ASSEMBLING A SPRAY STEEL OR ALUMINUM PLANS & CUTTING FILES

SPECIAL INTRODUCTORY OFFER: COMPLETE BOAT PLANS & CUTTING FILES ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The plans have all the information you need to build your own boat.. Each plan contains all the construction drawings & CUTTING FILES for STEEL or ALUMINUM construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE Ł69.00 ) e-book BUILD YOUR OWN SAILBOAT .. Only available at this price if you order off this page.
