Voyager Trawler Yacht 57 ALUMINUM or STEEL

STEEL OR ALUMINUM PLANS & CUTTING FILES or boat plans & Cutting Files

This STEEL OR ALUMINUM PLANS & CUTTING FILES is available for building in Steel or Aluminum and the first version has a twin tunnel semi-displacement shoal draft hull designed to operate at 20 knots. Other displacement and planing hull versions will be available as required.

boat plans:
These boat plans cover all the available information about the pre-cut STEEL OR ALUMINUM PLANS & CUTTING FILES package including plate & profile lists, weights, number of parts in STEEL OR ALUMINUM PLANS & CUTTING FILES, general arrangement boat plans, assembly boat plans, engineering boat plans plus samples of the cutting files...Usually about 8 - 12 sheets of drawings..... See prices Click HERE

STEEL OR ALUMINUM PLANS & CUTTING FILES STUDY boat plans on DOWNLOAD or on USB
- YOU CHOOSE DOWNLOAD OR USB
. . .
:
This DOWNLOAD or on USB
- YOU CHOOSE DOWNLOAD OR USB
. . .
includes 2000 STEEL OR ALUMINUM PLANS & CUTTING FILES ASSEMBLY PHOTOS as well as the boat plans covering all the available information about the pre-cut STEEL OR ALUMINUM PLANS & CUTTING FILES package including plate & profile lists, weights, number of parts in STEEL OR ALUMINUM PLANS & CUTTING FILES, general arrangement boat plans, assembly boat plans, engineering boat plans plus samples of the cutting files. The assembly and engineering plan sheets are in AUTOCAD 2000 format ... If you prefer the information on DOWNLOAD or on USB
- YOU CHOOSE DOWNLOAD OR USB
. . .
instead of printed sheets  - Contact

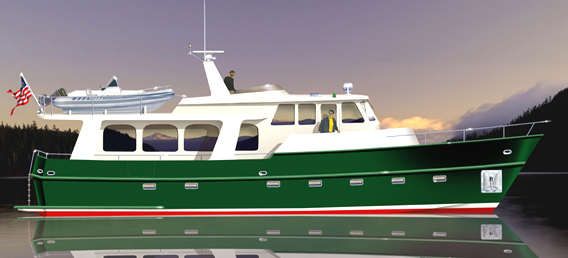

The Voyager TY 57 is available as a STEEL OR ALUMINUM PLANS & CUTTING FILES in either aluminum or steel. .....FIRST VERSION SOLD
57 ft LOA x 18 ft Beam x 3 ft 6 in Draft

We now have an order for a complete ALUMINUM STEEL OR ALUMINUM PLANS & CUTTING FILES for this design. If you are interested in a trawler yacht of this size and style now is the time to join in the design process for YOUR version of this vessel. Options include Steel construction, Semi-displacement or full displacement hull, single or twin engines.

There is generous room available to provide accommodation for two couples plus all the facilities expected by today's cruising yachtsman. Trans-ocean capabilities are a feature of this design.... for more information Contact Bruce today

This design has proved so popular over the past 30 years that we have decided to prepare an updated version and make this available as a cut-to-size STEEL OR ALUMINUM PLANS & CUTTING FILES. This semi-displacement cruiser can be built as a Charter fishing boat, Family Cruiser or Trawler Yacht simply by varying superstructure and accommodation arrangements. You can build the Waverunner 45 in either FIBERGLASS, steel or wood epoxy. The design has been built successfully around the world. The SUPER STUDY PLAN PACKAGE contain sample construction sheets, material lists, details of all the available versions accommodation and general arrangement boat plans.
