Dear
Bruce, We are
very pleased to announce that we have completed the construction of ship
TY 57 by project that we have bought from you. Your project is
excellent! The ship behaves great on the water and has excellent driving
characteristics.
We are
sending you a detailed description and photographs in attachment. Our
intention is to sell this ship and then make the next one, probably the
bigger TY 62. Therefore, we would like to ask you to put the photographs
and the description of the ship on your web site.
Many
thanks in advance!
|
Hull material: Certified steel, Length overall (LOA):
18.5m, Length on waterline (LWL): 15.8m, Beam: 5.8m, Draft: 1.4m,
Height: 2.6 m
Height above water: 6.7m (5.6m without mast),
Displacement: 52t, Cruising speed (est): 10 kt, Cruising range (est):
1890 nm
Number of
engines: 2, Engine type: Volvo Penta D9, Power: 2 x 355HP, Fuel tank:
2x3000 lt, Range 1,500 nm, house battery bank: 24V/2,200 Ah, DC solar power installed:
24V/840W, Inverter AC system: 3 x 5 kVA Quattro, AC Generator: 15kW/tri
phase
MORE INFORMATION AVAILABLE FROM THE BUILDER AT
nautica@tavros.com |
|
TY 57
SHOAL DRAFT TRAWLER ! |
The client
required a guaranteed 20 knots so as is our usual practice, we
designed this vessel to perform at the speed required plus a small safety
margin ... The results ... this Trawler 57 has now been successfully through her speed trials
where she
averaged 22 knots as designed and exactly as we predicted considering the
power available. |
|
|
NEW !
SUPER
STUDY BOAT PLANS ...
Delivered by DOWNLOAD to your computer.
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!
Lists
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN BOAT
..
Please note that when you receive your credit or
debit card statement the amount will be converted to YOUR local currency.
STEEL, ALUMINUM
€114.oo - £99.oo - us$139.oo
To order STUDY PLANS go to
SPECIALS PAGE
and
click on
€114.oo
BUY NOW BUTTON
|
SPECIAL
OFFER - ANY THREE STUDY PLANS FOR
£99.00 - us$129.00 - €114.oo
- A$179.00
CLICK HERE TO LEARN MORE
STEP BY STEP ASSEMBLY
PHOTOS INCLUDED WITH ALL STUDY PLANS
|
|
| Voyager
TY 57
-
This is an ideal boat for those where their cruising
area needs a great shallow draft trawler.
SHOAL
DRAFT Twin Tunnel Stern
ALUMINUM OR STEEL STEEL OR ALUMINUM PLANS & CUTTING FILES or Cutting files and boat plans
This STEEL OR ALUMINUM PLANS & CUTTING FILES is available for building in Steel or Aluminum
and the first version has a
twin tunnel
shoal draft hull designed to operate at up to 25
knots. We have now delivered the first STEEL OR ALUMINUM PLANS & CUTTING FILES. We also supplied a complete set of
windows as part of the package.
NEW PASSAGEMAKING
DESIGNS:
This is your opportunity to
have your own passagemaking 'Voyager' designed and built at an affordable price. Now is
your opportunity to put those pieces together into one boat that you REALLY like !
Consider customizing one of our new designs. Bring us YOUR ideas. We can offer Steel or
Aluminum boat plans and Cutting files, CUT-TO-SIZE STEEL OR ALUMINUM PLANS & CUTTING FILES or Part-Built or Complete Boats. The Trawler Yacht 55 is already a popular
design and we have sold a number of sets of cutting files and STEEL OR ALUMINUM PLANS & CUTTING FILES for this serious
offshore vessel.
These trawlers are designed in accordance
with Lloyds for category 1 (unrestricted operating / sailing area), which
is much better than the EU and other Classification Societies and the
CE-A require. Complete stability calculations to USCG offshore
requirements are included in the design package. All calculations are also
cross referenced against ABS requirements to ensure that the design meets
world-wide standards and specifications.
In the case of STEEL OR ALUMINUM PLANS & CUTTING FILES, all plate parts belonging to the hull, deck and
superstructure that are accurately cut to size are included. The parts are
marked with the appropriate part number and engraved matching marking
lines to assist in the assembly and location of the part in its position.
Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth
edges.
Plate parts are cut from ... MARINE ALUMINUM OR ...Lloyds
approved A Grade Shipbuilding quality STEEL that has been coated with
factory applied Sigma weld MC welding primer. We use and recommend steel
plate that has the official designation ISO standard 10474 or EN 10204
with 3.1.B certificate.
|
FROM BUILDER:
Hi, By the way, the trawler yacht of
Bruce's design that we are currently building is coming along very well. The quality
of the STEEL OR ALUMINUM PLANS & CUTTING FILES parts are the best we have ever seen, and as a result, we are saving time in
the build.
We have almost all of the plate hung in place and tacked up. We anticipate the seam
welding will start within a few weeks as there are some details to attend to. But we must
say again, that we are very happy with the STEEL OR ALUMINUM PLANS & CUTTING FILES quality.
Hope to hear from you soon ....Brian
| L.O.A. |
17.57 m |
57'
8" |
| L.W.L. |
15.55 m |
51'
0" |
| BEAM |
5.53 m |
18'
2" |
| DRAFT (Twin tunnel shoal draft
version) |
1.52m |
4'
0" |
| DISPLACEMENT (varies depending
on version) |
29,854
+ |
65,000 lbs
+ |
| POWER |
250 -
1,100 HP |
|
 |
Voyager
TY 57
Artists impression of the
TY 57; you can see that this boat has lived up to the promise
shown above.
The client
required a guaranteed 20 knots so as is our usual practice, we
designed this vessel to perform at the speed required plus a small safety
margin ... the results ... This Trawler 57 has now been successfully through her speed trials
where she
averaged 22 knots as designed and exactly as we predicted considering the
power available. |
|
 |
Voyager
TY 57

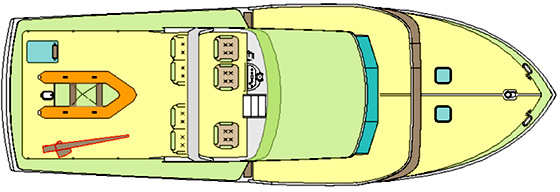

Flybridge deck view |
|
 |
Voyager
TY 57

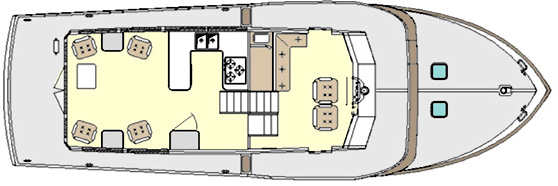

Salon and pilot house layout |
|
 |
Voyager
TY 57

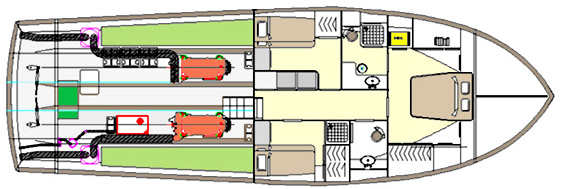

Below decks accommodation and
engineroom areas. |
|
 |
Voyager
TY 57

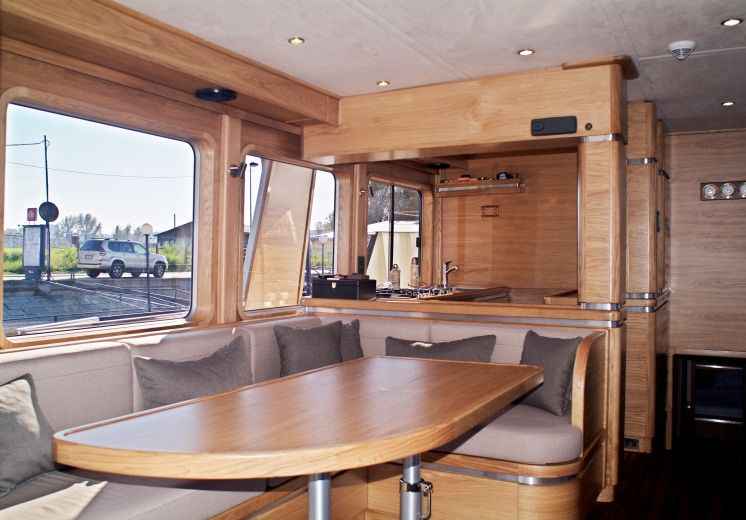

Note there is excellent headroom in Saloon, Engine room & in Forward sleeping
accommodation. |
|
 |
Voyager
TY 57

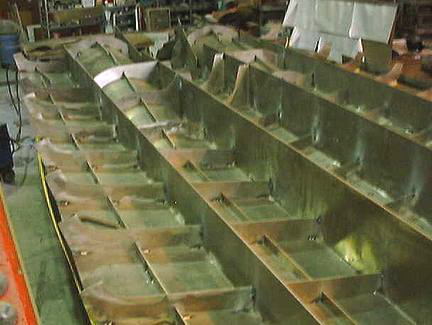

Note the tunnels aft - This comes formed as part of the STEEL OR ALUMINUM PLANS & CUTTING FILES. |
|
 |
Voyager
TY 57

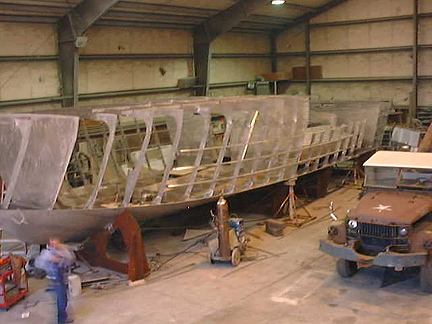

The hull goes together quickly
ALL STUDY PLAN PACKAGES ON DOWNLOAD
GIVE ACCESS TO HUNDREDS OF BOAT & STEEL OR ALUMINUM PLANS & CUTTING FILES ASSEMBLY PHOTOS |
|
SPECIAL
INTRODUCTORY OFFER:
BOAT
PLANS &
CUTTING FILES...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The plans have
all the information you need to build your own boat..
Each plan contains all the construction
drawings for
STEEL or ALUMINUM
construction, plus bonus drawings covering
electrical, plumbing and engineering, everything you need to build your
boat.
Plus you will receive a DETAIL FOLIO showing how to make many of your
own boat fittings, lists
of materials and equipment are all included plus all technical information,
numerous
construction drawings and written building instructions are all included.
You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN POWER BOAT
..
Only available at this price if you order off this page.
TY 57 PLANS & CUTTING FILES
ALUMINUM OR STEEL
REGULAR PRICE €1,995
SPECIAL OFFER
€995.00
To
order the PLANS & CUTTING FILES go to
SPECIALS PAGE
and click on
€995.00
BUY
NOW BUTTON
Your plans and CUTTING FILES will be sent
to you by
DOWNLOAD to your computer.
|
LETTER FROM A CUSTOMER WHO IS
BUILDING FROM
ONE OF OUR STEEL OR ALUMINUM PLANS & CUTTING FILES.
Hello Bruce,
Hope everything is going well. I can se your home page is growing larger by the minute.
My boat building is coming along fine. Everything is fitting nicely as it should. My crew
is excellent and they are enjoying building a boat like this (regards to restoring old
boats).
The yard is next to the *"Swedish Maritime Administration" and there
people were surprised with the speed that the boat has been developing. They thought that
we have had 10 persons for several months when in fact we have had three for a couple of
weeks.
The hull and deck plates are in place and the wheelhouse is starting to take shape. We are
estimating that we will start welding everything within a couple of weeks. We calculate
that we will have the boats maiden voyage inn late spring.
If you are going to the Nordic region in the fall or spring, please give us a call
I would be proud to show what my crew has done with the STEEL OR ALUMINUM PLANS & CUTTING FILES you supplied.
Long mail to get to the point but I wanted to inform you of something positive instead of
coming with a lot of questions.
Best regards
Andreas Dahlstrand
Add IT / Star Stream Shipping |
The Voyager TY 57 is available as a STEEL OR ALUMINUM PLANS & CUTTING FILES in either
aluminum or steel. If you are interested in a SHOAL DRAFT trawler yacht of
this size and style now is the time to join in the design process for YOUR
version of this vessel. Options include Aluminum or Steel construction,
single or twin engines.
There is generous room available to provide accommodation for two
couples plus all the facilities expected by today's cruising yachtsman. Trans-ocean
capabilities are a feature of this design.... for more information Contact Bruce today
FROM
CUSTOMER: Thank you for answering my
message. I have spent 100's of hours researching different firms and their
offerings. Yours is the only one that offers a complete package in the USA.
Again, thank you for your time as other firms only seem willing to respond if
you are prepared to spend a great deal of money. Terry McCarty ( Terry
has now ordered a Voyager 620 package ) |
|
|
