EURO 1600 UPDATE. Euro 1600 P - Planing hull that can be built in
Steel,
Aluminum or Fiberglass.
The Euro 1600 was originally designed as a Semi-Displacement Motor
Yacht for construction in Aluminum or Steel.
The CUTTING FILES and plans were developed in our design office and
many pre-cut STEEL OR ALUMINUM PLANS & CUTTING FILES and cutting file packages have been supplied to
builders world-wide. This Semi-Displacement
version is best
operating at speeds of between 12 and16 knots.
If you want Planing speeds with
reasonable HP then WEIGHT of steel is a problem so you should build
this boat in aluminum or if you insist on steel construction then
you must be prepared to install additional HP of up to twin 1,000 hp
diesels !
Based on our wide experience of designing planing hulls we have now
developed the new Euro 1600 P which can with suitable power, best be
operated at speeds from 18 – 30 knots.
Further information is available via the STUDY PLANS.
NOTE: We now have an excellent set
of construction photos plus many photos of completed EURO 1600 that
are available with the STUDY PLAN PACKAGES

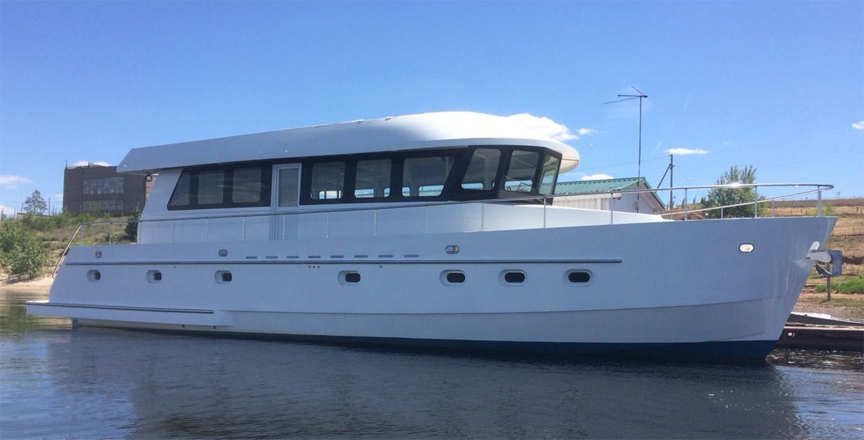

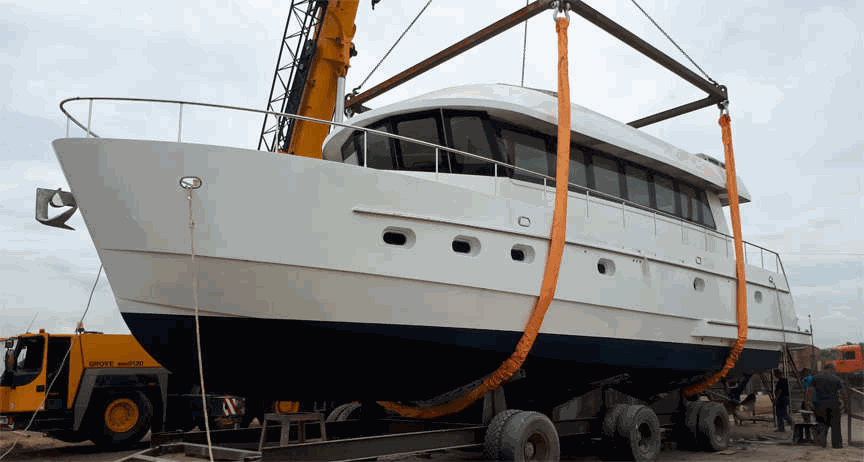

ABOVE AND BELOW: Two customized versions of the
EURO 1600 planing hull.
NEW !
SUPER
STUDY BOAT PLANS ...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL, ALUMINUM, FIBERGLASS as applicable to the particular boat plan - with up to 25 sheets per plan!
Lists
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN BOAT
..
STEP BY STEP
STEEL OR ALUMINUM PLANS & CUTTING FILES
ASSEMBLY PHOTOS INCLUDED WITH THE
STUDY PLANS
& CUTTING FILES.
EURO 1600
STEEL
STEEL OR ALUMINUM PLANS & CUTTING FILES
Plus NEW CUSTOM 1600 P - Aluminum version.
Stylish
Motor Yacht designed with the family or entertaining in mind, this mid size motor yacht will find many
admirers. The powerboat building STEEL OR ALUMINUM PLANS & CUTTING FILES comes complete with internal
stairs and steps leading down to the
swim platform.
Developed from the proven
Waverunner 52 and measuring 54 feet this motor yacht is for the serious cruiser or 'live-aboard'
and also makes an
ideal corporate vessel. The Euro 1600 may be powered by with single engine (with
optional "take
home engine" ) or Twins ... the offshore semi-displacement hull is capable of cruising at around 10
to 14 kts when powered with single 350 hp or twin 200 hp to 250 horse power engines.
This design is well suited for extended cruising with in absolute luxury .... This is one
of our very popular powerboat designs available in STEEL OR ALUMINUM PLANS & CUTTING FILES form ... over 20 sold to date.
This is now a
WELL PROVEN design with many examples with already in service in all parts
of the world.
This boat is designed in accordance with Lloyds for
category 1 (unrestricted operating / sailing area), which is much better
than the EU and other Classification Societies and the CE-A require.
Complete stability calculations are included in the design package. All
calculations are also cross referenced against ABS requirements to ensure
that the design meets world-wide standards and specifications.
In the case of STEEL OR ALUMINUM PLANS & CUTTING FILES, all plate parts belonging to the hull, deck and
superstructure that are accurately cut to size are included. The parts are
marked with the appropriate part number and engraved matching marking
lines to assist in the assembly and location of the part in its position.
Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth
edges.
Plate parts are cut from Lloyds approved A Grade
Shipbuilding quality STEEL that has been coated with factory applied Sigma
weld MC welding primer. We use and recommend steel plate that has the
official designation ISO standard 10474 or EN 10204 with 3.1.B
certificate.
Euro 1600 nearly completed and ready to leave the paint shop.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
Euro 1600 nearly completed and ready to leave the paint shop.
EURO 1600 The circular staircase is part
of the STEEL OR ALUMINUM PLANS & CUTTING FILES and is a feature of several of our motor yacht and trawler STEEL OR ALUMINUM PLANS & CUTTING FILES.
NOTE FROM BUILDER:
Bruce,
Thank you
for sending along the USB
... It is very helpful.
Several
outstanding questions were answered.
I appreciate your help.
My son and I just
completed putting on the first coat
of paint on the hull. We are going to do a bit of
fairing work, paint again and eventually take it to a
professional
painter for the finish work.
I'll send you some pictures a little later in the
summer. Regards Jim Fox
EURO 1600 Engine beds and bottom stringers in position.
ALL STUDY PLAN PACKAGES ON DOWNLOAD or on USB
GIVE ACCESS TO HUNDREDS OF BOAT & STEEL OR ALUMINUM PLANS & CUTTING FILES ASSEMBLY PHOTOS
EURO 1600 Built
from a Bruce Roberts
STEEL
STEEL OR ALUMINUM PLANS & CUTTING FILES
Hello bruce. In 2017
this wonderful vessel was build in the shipyard of nea peramos in Greece
thanks to your fascinating designs and the buiter George Zoumplios.
SEE STUDY PLANS FOR PHOTOS OF THIS
BOAT.
The vessel is
between 1600 euro and 1400 euro beceuse this is how i wonted it, lenghth 15
.05 metres width 4.95 metres metalic constuction
The vessel is used tp
transfer personel to comercial ships.It has excelient sailing abilities end
two doosan engines 360 hp and can accelherate 14 knots.
I am completely
satisfied will my choice and i would like to see a picture from your global
site
For Sale: Euro
1600 Motor Yacht, Bruce Roberts design. “The Boat”
is located at Duck Island Marine on the Delaware
River near Trenton, New Jersey. For more
information, to arrange a conference call, or to
arrange time to tour the boat, please send an email
to foxttm@aol.com
and put in the subject line of your email: “Euro
1600 I am interested” Full inventory and more
details about this boat are available from the
owner.
LOA
53' 09"
16.37m
LWL
45' 06"
13.88m
BEAM
17' 09"
5.47m
DRAFT
4' 00"
1.20m
EURO 1200 + Built
from a Bruce Roberts
STEEL
STEEL OR ALUMINUM PLANS & CUTTING FILES
Hi ! Sorry for my late
reply, My boat building is now 99,9% completed. There is still some
minor interior finishing works to be done in this winter.
She get first time in to water
August 2016. 2017 was first full season. There is now almost 2000 nm behind.
The overall feeling is that it is worth of all efforts I have put on her.
She´s final weight is 13 800 kg
with empty water tanks and 200 liter diesel on board. Relatively
lightweight, I think. Best cruising speed
8kn(10L/h) and top speed +11kn
(never tried more). There is single engine 220hp / 2200rpm.
The hull is extended by 750mm +
~200mm to swimming platform. The overall length is 13 meters. There is also
some design change at stern (above waterline). EURO1200 design seems to be
very tolerant to changes because all pre-calculations you have provided
match perfectly even I made my own modifications.
She floats right way as designed
and performance is as you have shown in your calculations. Propeller
selection was done with excel sheet you have provided. With the Excel
calculation of propeller I get 100% match in very first try.
There is some photos attached in
this mail. One from 2017 and two from
2016 (very first trip).
I have build her completely alone
(almost). In some points I get helping hands from my friends. The only
contractor was guy who did the polyurethane foam insulation.
The name she get from my grandma
(very old Finnish name, denotes "peaceful mind")
Brgs, Jussi. Finland.
PHOTOS OF THIS
BOAT IN THE STUDY PLANS PACKAGE.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
EURO 1600 – Sweet Sixteen
First
sea trials: Trials today went very well and all navigation equipment is now calibrated
and tested. All in perfect working order and the possibilities with the
Simrad system are endless, she runs and handles beautifully.
We took "Sweet Sixteen" to some wider and deeper water and of
course tested her manoeuvring / tracking / emergency stop and speed in the
process. With a current of 2 Kn she does on the main engine 11 - 12 Kn
down-current with headwind of 6 Bf and 10.5 Kn up-current at 2600 RPM.
Main
engine is Iveco 8210-SRM45-10, 6 cylinder 13,8 L 450 HP.
Aux
engine is Iveco 8041-M09 4 cylinder 95 Hp
The wake at the up-current speed of 10 Kn, just perfect.
Her turning circle is 20 m diameter at full rudder at 8 Kn speed.
Emergency stop on the main engine from 8 Kn till 0 is not
more then 20 meters, which is extremely good for this 35 ton lady. She
tracks perfect, except when reversing the main engine at full throttle
which causes her to break-out sideways (due to the auxiliary engine-prop)
but once aware of this it’s very easy to compensate by using the
rear-thruster.
The emergency / take home engine pulls out a speed of 5 Kn down-current
and 4,2 Kn up current. Still very good and serves its purpose.
Not shown on the pictures but we had several large Rhine barges,
overloaded as usual causing their usual wake of sometimes 1 m height but
Sweet Sixteen is not bothered. No rolling, very little pitching and we all
(6 persons) stood and staid without support on the flybridge.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
Standard flybridge layout - can
be varied to suit your requirements.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
Standard salon and control
station layout - can be varied to suit your requirements.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
Standard accommodation layouts -
can be varied to suit your requirements.
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
Euro 1600 being assembled in Egypt from one of our STEEL OR ALUMINUM PLANS & CUTTING FILES.
Dear Bruce, Having gone through about 50% of assembly work on my boat , I
find it very important to offer you, and everyone who took part in the design and cutting
files my sincerest congratulations for making this beautiful piece of art come to reality.
Words cannot fully express how enjoyable and easy you made it for me to assemble this
beauty with the utmost accuracy. Congratulations and thank you. Mahmoud
EURO 1400 / 1600 - Aft
Cockpit version.
STEEL or
ALUMINUM Cutting Files & boat plans
or
FIBERGLASS
boat plans and full size mold patterns
Hello bruce. In 2017
this wonderful vessel was build in the shipyard of near Peramos in Greece
thanks to your fascinating designs and the builder George Zoumplios.
SEE STUDY PLANS FOR PHOTOS OF THIS
BOAT.
The vessel is
between 1600 euro and 1400 euro beceuse this is how i wonted it, lenghth 15
.05 metres width 4.95 metres metalic constuction
The vessel is used tp
transfer personel to comercial ships.It has excelient sailing abilities end two
deisel engines 360 hp and can accelherate 14 knots.
I am completely satisfied
will my choice and i would like to see a picture from your global site Thank you karpodinis
pavlos
CUSTOM EURO 1600 -
Passenger or Crew Boat version
June 2004
Hi Bruce,
The build out of my Euro 16 is coming along. Progress has been a bit slow
because of my work schedule. I expect the boat will be launched sometime in
2005. I am enjoying the building process and don't want to finish the job
too fast. Hal in your Annapolis office has been very helpful. The prints he sent
along showing the engine room and other parts of the boat have really
helped. I'll send along some pictures. I promise. Jim Fox - See
photos of Jim's boat in the study plan package on USB
EURO 1600
CUTTING FILES & ASSEMBLY PLANS
"My boat STEEL OR ALUMINUM PLANS & CUTTING FILES arrived
in very good condition. Lots of steel! Nicely packed. The assembly looks
very straight forward. Should be fun. I would like a price quote on windows for the Euro
16 M....Regards Jim
LOOKING FOR SOMETHING
LARGER ?
26 M
(shown). These
boats are available as pre-cut hulls or part or completely built. NEW Custom Motor Yachts...72 ft / 22M, 75 ft / 23M, 85 ft complete
boats or as Semi-custom boat plans and patterns. Varied hulls types based on Semi-displacement
or planing hull configurations are available. Numerous different accommodation layouts are
possible.
SPECIAL
INTRODUCTORY OFFER:
PLANS &
CUTTING FILES...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The plans have all
the information you need to build your own boat.
Each plan contains all the construction
drawings for
STEEL or ALUMINUM or FIBERGLASSconstruction, plus bonus drawings covering
electrical, plumbing and engineering, everything you need to build your
boat.
Plus you will receive a DETAIL FOLIO showing how to make many of your
own boat fittings, lists
of materials and equipment are all included plus all technical information,
numerous
construction drawings and written building instruction
FREE
( VALUE £69.00 )
e-book
BUILD YOUR OWN POWER BOAT
..
Only available at this price if you order off this page.

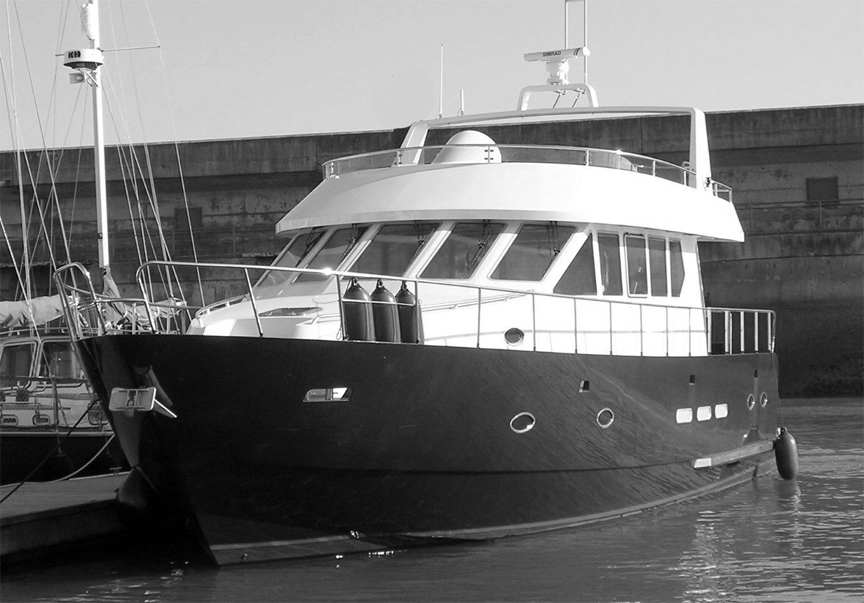

EURO 1600 MOTOR YACHT
12 - 15 KNOTS - SEMI- DISPL. STEEL
PLANS &
CUTTING FILES
EURO 1600
REGULAR
PRICE €1,995
LIMITED TIME SPECIAL OFFER
€995
To order the PLANS & CUTTING
FILES go
to
SPECIALS PAGE
and click on
€995.00
BUY
NOW BUTTON
Your plans and CUTTING FILES will be sent to
you by
DOWNLOAD to your computer.
EURO 1600 MOTOR YACHT
20 - 35
KNOTS - PLANING ALUMINUM
PLANS & CUTTING FILES EURO
1600
REGULAR
PRICE €1,995
LIMITED TIME SPECIAL OFFER
€995
To order the PLANS & CUTTING
FILES go
to
SPECIALS PAGE
and click on
€995.00
BUY
NOW BUTTON
Your plans and CUTTING FILES will be sent to
you by
