Illustrated Custom Boatbuilding.
We recommend that you read
 this hardcover book - Order now
 and we will pay the postage.

Voyager 760 - Illustration by Ian Kirkwood ian@ik-design.co.uk

NEW - VOYAGER 785 - THIS CUSTOM SAILBOAT CAN BE BUILT IN  WOOD / EPOXY - CONTACT BRUCE FOR MORE DETAILS

NEW ! SUPER STUDY BOAT PLANS ... Delivered by DOWNLOAD to your computer.  The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.

Each STUDY PLAN contains ALL the construction drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!

Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package.

PLUS you receive a FREE ( VALUE 69.00 ) e-book BUILD YOUR OWN BOAT .. Please note that when you receive your credit or debit card statement the amount will be converted to YOUR local currency.





STUDY PLANS - VOYAGER 760 + 765 + 785


STEEL, ALUMINUM, WOOD EPOXY

€114.oo - 99.oo - us$139.oo




To order STUDY PLANS go to SPECIALS PAGE and



click on  €114.oo

BUY NOW BUTTON


SPECIAL OFFER - ANY THREE STUDY PLANS  FOR


99.00 - us$129.00 -€114.oo

- A$179.00

CLICK HERE TO LEARN MORE

STEP BY STEP ASSEMBLY PHOTOS INCLUDED WITH ALL STUDY PLANS

VOYAGER 760 WOOD EPOXY boat plans AND FULL SIZE PATTERNS.

VOYAGER 765 STEEL OR ALUMINUM ALUMINUM PLANS & CUTTING FILES

VOYAGER 785 WOOD EPOXY boat plans AND FULL SIZE PATTERNS.

This new robust go anywhere at any time -  radius chine serious cruising sail boat is based on our New York 65 many of which are sailing the oceans of the world. This new design is available in STEEL OR ALUMINUM PLANS & CUTTING FILES form or custom CUTTING FILES.  We can design custom sail and accommodation boat plans to suit your particular requirements.

Bruce Roberts SAILBOAT STEEL OR ALUMINUM PLANS & CUTTING FILES
Pre cut boat STEEL OR ALUMINUM PLANS & CUTTING FILES are all the metal parts required to build a complete boat. These parts are computer generated and NC Plasma cut before they are packed and delivered ready for you to start assembling and welding into the finished boat. We design and nest the package using our specialized computer programs, then cut on a computerized plasma-oxygen cutter. For example, an 13m ( 43' ) yacht would comprise of around 470 parts! These STEEL OR ALUMINUM PLANS & CUTTING FILES are shipped world-wide, each in individual containers.

These cruising sailboats are designed in accordance with Lloyds  for category 1 (unrestricted operating / sailing area), which is much better than the EU and other Classification Societies and the  CE-A require. Complete stability calculations to USCG offshore requirements are included in the design package. All calculations are also cross referenced against ABS requirements to ensure that the design meets world-wide standards and specifications.

In the case of STEEL OR ALUMINUM PLANS & CUTTING FILES, all plate parts belonging to the hull, deck and superstructure that are accurately cut to size are included. The parts are marked with the appropriate part number and engraved matching marking lines to assist in the assembly and location of the part in its position. Cutting method is Plasma / Oxygen, ensuring highest accuracy and smooth edges.

Plate parts are cut from Lloyds approved A Grade Shipbuilding quality STEEL that has been coated with factory applied Sigma weld MC welding primer.  We use and recommend steel plate that has the official designation ISO standard 10474 or EN 10204 with 3.1.B certificate.
specifications VOYAGER

 765

VOYAGER

765

  VOYAGER

 760

VOYAGER

 760

  VOYAGER

785

VOYAGER

785

LOD 76'-5" 23.31 M   76'-0" 23.16 M   77'-11" 23.76 M
LWL 65'-0" 19.81 M   67'-8" 20.62 M   74'-10" 22.81 M
BEAM 19'-6" 5.94 M   20'-0" 6.10 M   19'-8" 6.00 M
DRAFT Various Various   Various Various   9'-10" 3.00 M
SAIL AREA 2,800 SQ FT 260 SQ M   2,647 SQ FT 246 SQ M   Various Various

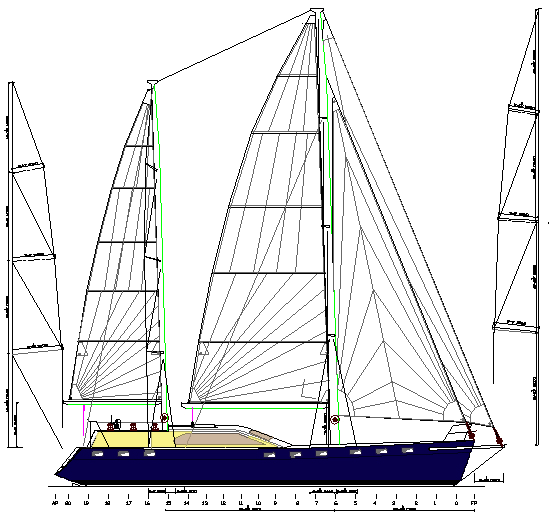

VOYAGER 760  WOOD / EPOXY

CUSTOM INTERIOR LAYOUTS are available for this design.
SEE STUDY PLAN PACKAGE


VOYAGER 765

STEEL OR ALUMINUM PLANS & CUTTING FILES
This design will accept a variety of rigs - Cutter headed Ketch shown.

STUDY PLAN PACKAGES ON DOWNLOAD or on USB
- GIVE ACCESS TO MANY step by step BOAT  CONSTRUCTION PHOTOS + PHOTOS OF COMPLETED BOATS ETC.



VOYAGER 765

STEEL OR ALUMINUM PLANS & CUTTING FILES
This new design will accept a variety of rigs - Cutter headed Ketch shown.  This charter layout is only one of many possible accommodation lay-outs for this fine cruising boat.

VOYAGER 785

WOOD / EPOXY

CUSTOM INTERIOR LAYOUTS are available for this design.
SEE STUDY PLAN PACKAGE

SPECIAL INTRODUCTORY OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS OR CUTTING FILES ... Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.

The plans have all the information you need to build your own boat..

Each plan contains all the construction drawings & FULL SIZE FRAME PATTERNS WOOD EPOXY  or CUTTING FILES for STEEL or ALUMINUM construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE 69.00 ) e-book BUILD YOUR OWN SAILBOAT. Only available at this price if you order off this page.





PLANS & FULL SIZE FRAME PATTERNS



WOOD EPOXY VOYAGER 760



2,995 - €3,325 - us$3,895 - A$3,895



PLANS & CUTTING FILES  EMAIL BRUCE FOR



TODAY'S SPECIAL OFFER & PAYMENT INFO.






PLANS & FRAME PATTERNS



WOOD EPOXY VOYAGER 785



2,995 - €3,325 - us$3,895 - A$3,895



PLANS & CUTTING FILES  EMAIL BRUCE FOR



TODAY'S SPECIAL OFFER & PAYMENT INFO.






PLANS & STEEL OR ALUMINUM



CUTTING FILES VOYAGER 765



2,995 - €3,325 - us$3,895 - A$3,895

PLANS & CUTTING FILES  EMAIL BRUCE FOR



TODAY'S SPECIAL OFFER & PAYMENT INFO.
