Illustrated Custom Boatbuilding.
We recommend that you read
 this hardcover book - Order now
 and we will pay the postage.

Coastworker 25 / 28

CW "KNOCKABOUT' 25 ALTERNATE DINETTE INTERIOR

28 ft / 8.5m Coastworker
 Build in FIBERGLASS, STEEL, ALUMINUM OR WOOD EPOXY



28' - 32' - 36' Coaster-Coastworker.

BOAT STUDY PLANS ... Delivered by DOWNLOAD to your computer. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.  Each STUDY PLAN contains ALL the construction drawings for each material - STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included. You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN BOAT ..



STUDY PLANS CW25 + CW28 ALL VERSIONS


STEEL, ALUMINUM, WOOD / EPOXY



€114.oo - £99.00 - $125.00
 CW28 X 8ft - 3in /  2.51m beam CUTTING FILES & PLANS NOW available

NEW: CW28 X 9ft - 4in /  2.85m beam CUTTING FILES & PLANS available

To order STUDY PLANS go to SPECIALS PAGE and

click on  €114.oo BUY NOW BUTTON





SPECIAL OFFER - ANY THREE STUDY PLANS  FOR
 €114.oo  -£99.oo  $125.oo

 CLICK HERE TO LEARN MORE

SPECIAL OFFER: COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS OR CUTTING FILES  .  Delivered by DOWNLOAD to your computer within 12 hours of you placing your order. The plans have all the information you need to build your own boat.

Each plan contains all the construction drawings for STEEL, ALUMINUM, FIBERGLASS & WOOD EPOXY construction, plus bonus drawings covering electrical, plumbing and engineering.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment, all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN POWERBOAT. Only available at this price if you order off this page.





COASTWORKER 25

(Steel or Aluminum or Fiberglass)


PLANS & FULL SIZE PATTERNS



REGULAR PRICE €695


SPECIAL OFFER €195

 To order the PLANS & FRAME PATTERNS  go to SPECIALS PAGE



and click on  €195.00  BUY NOW BUTTON


Your plans and FRAME PATTERNS will be sent to you by



 DOWNLOAD to your computer.





COASTWORKER  28



PLANS & FULL SIZE FRAME PATTERNS

(Steel or Aluminum or Fiberglass or Plywood )



REGULAR PRICE €695
 SPECIAL OFFER €195

 To order the PLANS & FRAME PATTERNS  go to SPECIALS PAGE



and click on  €195.00  BUY NOW BUTTON Your plans and FRAME PATTERNS


 will be sent to you by DOWNLOAD to your computer.





COASTWORKER  28




 CUTTING FILES & PLANS  COASTWORKER 28ft x  8ft - 3in Beam - (Aluminum)



or

CUTTING FILES & PLANS  COASTWORKER 28ft x  9ft - 4in Beam - (Aluminum or Steel)



  REGULAR PRICE €1,395


SPECIAL OFFER €695



 To order the PLANS & CUTTING FILES go to SPECIALS PAGE



and click on  €695.00  BUY NOW BUTTON Your plans and CUTTING FILES


will be sent to you by  DOWNLOAD to your computer



Over 1,200 Coastworkers completed and in service world-wide.



This boat was built by Mika Jδppinen in Finland who writes " I started building my steel boat with your plans.  This summer we had very first test drive in June 2016.  It was great moment and very successful test !!"  Please follow the link here for the video: https://youtu.be/gVfSzxOavc8



This Coast Worker 28 ( 28' x 10'  8.5m x 3.05m ) is easy to build from Bruce Roberts Cutting files and boat plans - It takes only 75 hours to weld up this boat. We also have a 8' - 3" ( 2.51m ) beam aluminum light weight version which is ideal for trailering. All these versions are included in the STUDY PLANS PACKAGE.



NEW  CW "KNOCKABOUT" 25

Designed for fiberglass construction EMAIL BRUCE for  more information about this new version



COASTWORKER 28 - CONSOLE VERSION

 FIBERGLASS OR ALUMINUM PLANS AVAILABLE

ORDER STUDY PLANS

To order STUDY PLANS go to SPECIALS PAGE and

click on  €78.oo  BUY NOW BUTTON

STEP BY STEP CONSTRUCTION PHOTOS AVAILABLE WITH STUDY PLANS


Coastworker 25 / 28 - SEE ALL SIZES OF WORKBOATS

There are several versions of this design - see examples above and below. When you order the STUDY PLANS you will receive ALL the versions - over 100 sheets of drawings plus step by step construction photos.

Boat plans and patterns available for building in either Steel, Aluminum Fiberglass or Wood Epoxy.
Also check out the new 28ft trailerable planing hull version - See below.

This design makes for a good first time boatbuilding project and makes an ideal all purpose Workboat, Dive boat or Fishing boat. With it's full range of hull shapes it can be turned to almost any task.  Over 1,000 Coastworker 25 / 28 have been completed from our boat plans and are now in service in various parts of the world.

You may choose between either displacement, semi-displacement or planing hull forms. Power options range from a 50 hp engine in the displacement version to 250 hp in the planing version. The pilot house may be extended aft if you wish to build her as a family cruiser and require more accommodation. Power units offer a choice of  Single or Twin inboard or Stern Drives, or even single or twin Out-boad power has been fitted to this versatile boat.

 The boat plans and frame patterns are easy to follow and you can build this boat in your chosen material ... see options above. With its full displacement, semi-displacement or planing hull this boat can be built as a family cruiser or as a rugged work boat.

The chine hull has provided an excellent overall hull shape and plating has been calculated to provide easy construction with minimum wastage.  This design was prepared for operators in the North Sea and therefore the boat had to a rugged and safe sea boat. The full displacement hull makes for economical operation and has been designed to operate around the 7 to 8 kt cruising speed range with a 60 hp engine.

Amateurs with welding experience should have no problems building this vessel using the full size frame patterns which come with the boat plans, and the straight forward, step by step instructions.  If you choose fiberglass construction then virtually anyone with the very minimum of hands on DIY experience can ( and already have) built this boat.
L.O.A. 7.80 m  or  8.53 m 25' - 6" or  28' -0"
L.W.L. 7.16 m  or  7.93 m 23'-  6" or  26'- 0"
BEAM   2.43  or  2.85 m 8' - 3"  or  9' - 4"
DRAFT 1.20 m 3' -  9"
   Options: STEEL or ALUMINUM or FIBERGLASS or WOOD EPOXY

     25 FT  COASTWORKER VERSIONS

1.  FIBERGLASS Boat plans and frame patterns for 25 ft long x 9'-4" beam Semi displacement hull (10 knots)

2.  FIBERGLASS.  Boat plans and frame patterns for 25 ft long x 9'-4" beam Planing hull (Up to 30 knots but best 18 – 25 knots)

3.  STEEL OR ALUMINUM Boat plans and frame patterns for 25 ft long x 9'-4" beam Semi displacement hull (10 knots)

4.  STEEL or ALUMINUM Boat plans and frame patterns for 25 ft long x 9'-4" beam Planing hull ( Up to 30 knots but best 18 – 25

5.   FIBERGLASS Boat plans and frame patterns for 25 ft long x 8'- 3" beam (TRAILERABLE) Semi displacement hull ( 10 knots )

6.  FIBERGLASS Boat plans and frame patterns for 25 ft long x 8’- 3”  beam (TRAILERABLE)  Planing hull (Up to 30 knots but best 18 – 25 knots)

7.  FIBERGLASS Boat plans and frame patterns for 25 ft long x 8'- 3" beam (TRAILERABLE) Semi displacement hull ( 10 knots )

8.  FIBERGLASS.Boat plans and frame patterns for 25 ft long x 8’- 3”  beam (TRAILERABLE)  Planing hull ( Up to 30 knots but best 18 – 25 knots)


     28 FT COASTWORKER VERSIONS

1.  FIBERGLASS Boat plans and frame patterns for 28 ft long x 9'-4" beam Semi displacement hull ( 10 knots ) .

2.  FIBERGLASS Boat plans and frame patterns for 28 ft long x 9'-4" beam planing hull (Up to 30 knots but best 18 – 25 knots) .

3.  STEEL OR ALUMINUM Boat plans and frame patterns for 28 ft long x 9'-4" beam Semi displacement hull (10 knots )

4. STEEL or ALUMINUM or WOOD EPOXY Boat plans & frame patterns for 28 ft  x 9'-4" beam planing hull (18 to 30 knots)

5.  FIBERGLASS.  Boat plans and frame patterns for 28 ft x 8'- 3" beam ( TRAILERABLE ) Semi displacement hull (10 knots)

6.  FIBERGLASS Boat plans and frame patterns for 28 ft x 8’- 3”  beam ( TRAILERABLE ) planing hull (18 – 25 knots)

7. FIBERGLASS Boat plans and frame patterns for 28 ft x 8'- 3" beam (TRAILERABLE) planing hull (18 – 25 knots)

8. ALUMINUM or STEEL CUTTING FILES & Boat plans for 28 ft x 8’- 3” (TRAILERABLE)  planing hull (18 – 25 knots)

9. ALUMINUM or STEEL 28 ft x  9ft - 4 ins beam CUTTING FILES & Boat plans for Semi-isplacement hull. ((10 knots)



28' - 32' - 36' -COASTER - COASTWORKER SERIES BOTTOM OF THIS PAGE.

9.  WOOD EPOXY Boat plans and frame patterns for 28 ft long x 10’- 0”  beam Planing hull (18 – 25 knots)

10. WOOD EPOXY Boat plans and frame patterns for 32 ft long x 10’- 0” beam Planing hull (18 – 25 knots)

11. WOOD EPOXY OR ALUMINUM Boat plans and frame patterns for 36 ft long x 10’- 0” beam Planing hull (18 – 25 knots)


SEE NEW CENTER CONSOLE VERSION AT BOTTOM OF THIS PAGE


Coastworker 25 / 28
 This boat can be built in a variety of length and beams - see the options above



FROM RECENT OVERSEAS CUSTOMER:

Many thanks for you Mr. Bruce.  I followed your instructions and I downloaded the two folders in a separate way as you decided.

Thanks for your cooperation my friend I will read and see all the information and if I have any question I will not be hesitate to ask you .

Finally your prompt action is highly appreciated.  Regards Rached



Coastworker 25 / 28

From a COASTWORKER 25 BUILDER:

HI Bruce, I ordered a set of boat plans for my best friend for Christmas, here it is ONE month later & we are going to start putting the bottom on her today.

The planing hull design is excellent. She's a weekend project because both of us have full time jobs. We can't wait to christen her "Keel Estate". Some pictures & updates are soon to follow....Regards John Dunn

HI Bruce, I recently received my boat plans and patterns for the coastworker 25', 8' planning hull Steel / Aluminium. I must say I am more than happy.

One thing I am curious about getting though is the patterns on a cad file, I have just noticed this information on the your web site and was hoping you could send me some information on the cost and the style of format e.g. dwg,dxf etc.. thanks once again      Brett Muller

ANSWER: We can supply AutoCAD files for any parts of the boat plans and patterns ... they are in DWG format.




Coastworker 25 / 28

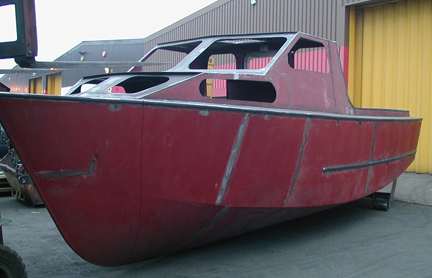

This Coastworker 25 was built by David Wren in England UK and the owner is very happy with the results so far.
Coastworker 25 / 28

This is the long cabin version of the  Coastworker 25 / 28



Coastworker 25 / 28

This is just one of the possible accommodation layouts for the long cabin version of the  Coastworker 25 / 28


Coastworker 25 / 28



New Trailerable Planing hull version with extended cabin.

Hi Bruce, Have finally finished and sea trialled our Coastworker 28. It performs and handles extremely well.  Regards Peter.

Coastworker 25 / 28

Trailerable Planing hull version with extended cabin.Coastworker 28 on its trailer - the trailer boat plans come with the boat plans and many builders do also build there own from our boat plans.
Coastworker 25 / 28

Coastworker 28 - here we see part of the very spacious cockpit - note the storage boxes in the stern area.
Coastworker 25 / 28

Coastworker 28 - here we see the engine box which may double as a table in some accommodation layouts.
COASTWORKER 25
 ALUMINUM, FIBERGLASS or STEEL

COASTWORKER 28
ALUMINUM, FIBERGLASS or STEEL

Boat plans and patterns for this Custom center console version is available for building in Aluminum, Fiberglass or Steel Choose either Coastworker 25 or Coastworker 28

BEAM - Available in 8FT or 9'-3" versions.


COASTER CW SERIES.




 COASTER CW 28 - FISHERMAN / WORK BOAT  WOOD EPOXY
 LOA 28' - 10"/  8.82 m ....  Beam 10 ft / 3.05 m

LINK TO SEE PRICES AND ORDER

COASTER CW 32 - FISHERMAN / WORK BOAT WOOD EPOXY
 LOA 32' - 8"  /  9.96 m ....  Beam 11 ft /  3.35 m

LINK TO SEE PRICES AND ORDER

COASTER CW 36 - FISHERMAN / WORK BOAT  WOOD EPOXY
 LOA 36' - 10" / 11.25 m ....  Beam 12 ft / 3.65 m

LINK TO SEE PRICES AND ORDER

COASTER CW 36 - FISHERMAN / WORK BOAT ALUMINUM
 LOA 36' - 10" / 11.25 m ....  Beam 12 ft / 3.65 m

LINK TO SEE PRICES AND ORDE
