This is one of my favourite designs. Long
waterline length, enough displacement so that it won't be thrown around by waves, shoal draft, strong and very economical to build. No wonder
the Tom Thumb series is so popular.
The boat plans for the Tom Thumb
series are available for the quick and easy multi-chine steel or
aluminium construction.
Starting with
the Tom Thumb 26 with a beam of 10'-4" / 3.20 meters and
headroom of 6'-3" / 1.9 meters the interior is very spacious for a vessel this size. Her hull speed
is a fraction over 6 knots. This vessel will take you anywhere you are capable of taking
her. The large scale boat plans include full size frame patterns and you will find this boat an
ideal first steel boatbuilding project.
|
BOAT
STUDY
PLANS.
Delivered by DOWNLOAD to your computer
The study plans have lists of
materials & equipment etc & these will be useful in
costing out the complete boat.
Each STUDY PLAN contains ALL the construction
drawings for each material - STEEL & ALUMINUM as applicable to the particular boat plan - with up to 25 sheets per plan! Lists
of materials - Technical information - Numerous
construction drawings are all included. You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the study plan package.
PLUS you receive a FREE
( VALUE £69.00 )
180 PAGE e-book
BUILD YOUR OWN BOAT.
STUDY PLANS
T26-28-305-330
£99.00 - $125-00 - €114.oo
To order STUDY PLANS go to
SPECIALS PAGE
and
click on
€114.00
BUY NOW BUTTON
|
SPECIAL
OFFER - ANY THREE STUDY PLANS FOR
£99.00 - $125-00 - €114.oo
CLICK HERE TO LEARN MORE
STEP BY STEP ASSEMBLY
PHOTOS INCLUDED WITH ALL STUDY PLANS
|
COMPLETE BOAT PLANS & FULL SIZE FRAME PATTERNS
...
Delivered by DOWNLOAD to your computer within 12 hours of you placing your order.
The
plans have all the information you need to build your own boat.
Each plan contains all the construction
drawings for STEEL or
ALUMINUM
construction, plus bonus drawings covering
electrical, plumbing and engineering. Plus you will receive a DETAIL FOLIO showing how to make many of your
own boat fittings, lists
of materials and equipment, all technical information,
numerous
construction drawings and written building instructions are all included.
You
can view & print the drawings in full or in sections.
BUILDING PHOTOS are included in the plan package.
PLUS you receive a FREE
( VALUE £69.00 )
180 PAGE e-book
BUILD YOUR OWN SAILBOAT.
PLANS & PATTERNS TT26 TT28 or TT305 or
TT330
REGULAR PRICE €595
SPECIAL
OFFER €195
To order the PLANS & PATTERNS
go to
SPECIALS PAGE
and click on
€195.00
BUY
NOW BUTTON
Your plans and patterns will be sent
to you by
DOWNLOAD to your computer.
|
ALL TOM THUMB
VERSIONS SHOWN IN the ONE STUDY PLAN PACKAGE.
|
| |
TOM THUMB 26 |
TOM
THUMB 28 |
TOM
THUMB 305 |
TOM
THUMB 330 |
| L.O.A |
7.92 m
25' 11" |
8.53 m
28' 0" |
9.25 m
30' 4" |
10.13 m
33'-8" |
| L.W.L. |
7.24 m
23' 9" |
7.47 m
24' 6" |
8.53 m
28' 0" |
9.60 m
31'-6" |
| BEAM |
3.20 m
10'
4" |
3.05 m
10'-0" |
3.35 m
11'-0" |
3.73 m
12'-3" |
| DRAFT |
1.22 m
4'
0" |
1.37 m
4' 6" |
1.37 m
4' 6" |
1.51 m
4' 10" |
| DISPLACEMENT |
4,082 kg
9,000 lb |
5,103 kg
11,250 lb |
6,010kg
13,350 lb |
6,690kg
14,750 lb |
| BALLAST |
1,360 kg
3,000 lb |
1,700 kg
3,550 lb |
1,800 kg
3,968 lb |
2,000
kg
4,409 lb |
TOM THUMB 26

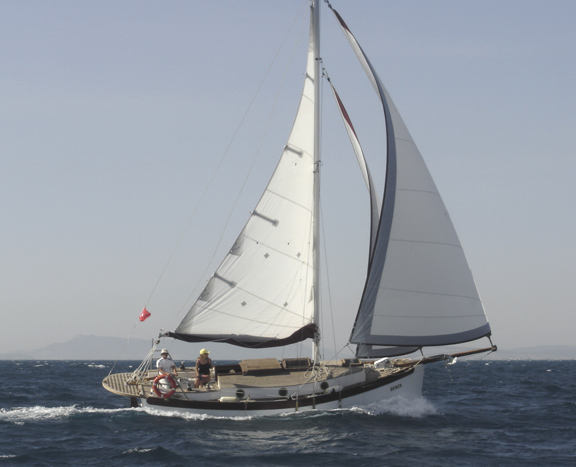

Dear Bruce, I built a tom thumb 26 as you can see the photo attached. I would
like to thank you for this perfect design. I add a boomkin and a long bow also
cutter rig. And I add additional 250 kg in keel because of larger sail area.
Round shape and teak deck and mahogany works for traditional boat appearance.
She is cruising perfect and she can reach
6 - 7 knot easily in between 3-7 beufort with sails. I also change the
accommodation according to my requirements with mahogany work. I cruised over
1000 miles in this summer with her & I am totally satisfied & I am proud of her.
I strongly recommend this perfect design for all the sailors that want to built
their boat by themselves. Thanks and best Regards, Hakan GOKMEN
Here we see the
interior of the Tom Thumb 26 built by Hakan GOKMEN
Hi Bruce,
Attached is a picture of "Margarita" crewed by my nephews, headed south
again ...This shot is on Indian River in Cocoa Fla...They are headed for
Bahamas and Turks...I launched this boat in 1990 and she looks like a
newborn 20 yrs. later...and even better...Someday I might get her
back but in the meantime she is turning heads....Please use the
pictures and script as you wish...Regards. John Larkum
The Tom Thumb will accept Gaff, Bermudian, Junk rigs.
Tom Thumb 26 interior.
Tom Thumb 28 interior.
Above: Tom Thumb 305 & 330 interior layouts.
The Study plans have photos of several more Tom Thumb sailboats that have
been built and cruised throughout the world.
|
