You can build this versatile Cat in ALUMINUM

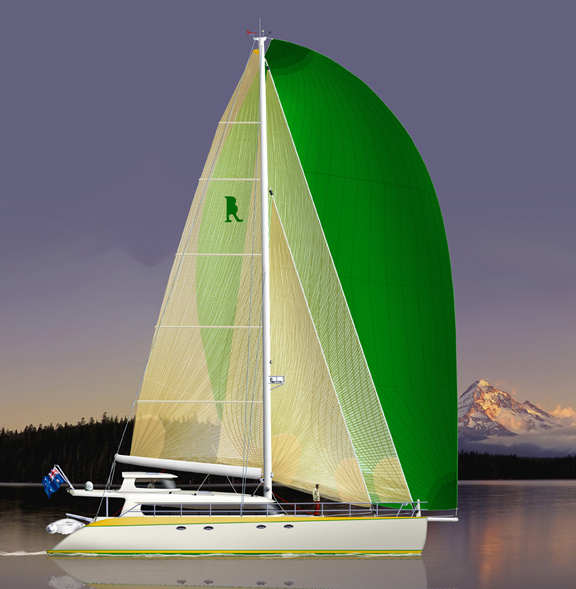

EURO CATAMARAN 2000
'Indio Pacific' built in Brisbane by Bob Rochester.



G'day Bruce, The boat was launched on June 4.  Spent the next 2 months commissioning.



Now at Lady Musgrave lagoon and heading to Cairns. The yacht is well up to expectations and it provides all the security and comfort that we expected.   Comfort is superb and cruising range excellent.



 Last year was mainly light conditions where the Ghoster was most used and was carried up to a boat speed of 7 knots and over the deck speed of 12 knots. Higher winds suited the Genoa and Main with boat speeds up to 11 knots.



When motoring the Yanmar 4 JH4-HTE's were comfortable and economical at 2000 revs giving 6 knots. At max revs a speed of 10 knots can be relied on.

Most appreciated features - EchoTEC model 900 AML - 2  Watermaker, Mase 11.1 Generator, 1000 watt of Solar, 24v Alternators on Engines - All of this enables the installation of 230v ac. This provides excellent refrigeration, water supply and generally best use of household appliances..  The other striking feature of Indigo would be spaciousness in the limited number of main cabins.



Boat is well up to expectations. Have experienced some heavy weather and are impressed by the stable ride especially to windward. Judy can still use the vacuum cleaner at 30 knots +  She is alo impressed by her washing machine and dishwasher not to mention the deep freeze !!  Large Rig but easily handled by 2 persons.

Good range and 10 knots under power or sail
You have achieved this in all respects Bruce.
Best regards, Bob and Judy Rochester-

~S.V INDIGO PACIFIC~
SEE MORE PHOTOS OF INTERIOR WITH STUDY boat plans



SEE SAILING CAT PLANS AND KITS 35FT - 78FT



SEE POWER CAT PLANS AND KITS 35FT - 78FT.

NEW ! SUPER STUDY BOAT PLANS ... Delivery timing and format are confirmed by Bruce Roberts USA after ordering. Delivery timing and format are confirmed by Bruce Roberts USA after ordering. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.
Each STUDY PLAN contains ALL the construction drawings for each material - ALUMINUM & FIBERGLASS & STEEL - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN (Sail or Power) BOAT.

ALUMINUM


   €79.00

To order STUDY PLANS go to SPECIALS PAGE and

Click on  €79 BUY NOW BUTTON

CONTACT BRUCE ROBERTS USA FOR CURRENT AVAILABILITY: BOAT PLANS & FULL SIZE FRAME PATTERNS ... Delivery timing and format are confirmed by Bruce Roberts USA after ordering.  The plans have all the information you need to build your own boat.

Each plan contains all the construction drawings & FULL SIZE PATTERNS for ALUMINUM construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN SAILBOAT .. Only available at this price if you order off this page.

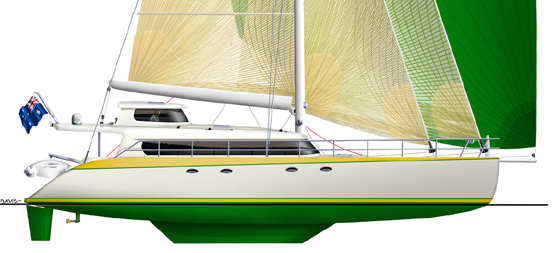

Euro CATAMARAN 2000 - ALUMINUM
Boat plans and FULL SIZE frame patterns for building in ALUMINUM  plans and patterns,  This CATAMARAN was designed for personal use or charter work and the accommodation was laid out with that in mind.  As you can see by the reports from the owner of the prototype - this cat has been fully tested under all types of ocean cruising conditions and is the perfect design for those who want to undertake extended offshore cruising.  Please note you can - BUILD FOR LESS using our plans and patterns !
LOD 65'-0"

19.81 M

LWL 63'-6"

19.35 M

BEAM

29'-3"

8.91 M

SAIL AREA 1,945 SQ FT 118  SQ M

SEE: ALL CATAMARAN BOAT PLANS & STEEL OR ALUMINUM PLANS & CUTTING FILES



 EURO CATAMARAN 2000
Aluminum construction

This is our suggested lay-out for the main deck. As you can imagine, there are a variety of ways you could arrange this accommodation to suit your personal requirements.

EURO CATAMARAN 2000

Aluminum construction



Hi Bruce, Thank you very much for Cat MS 65 and the Cat 2000 Study Plans. It is a very huge piece of information! I need time to study this then I will get in touch with you. Thanks again! Best regards,  Valeriy

G'day Bruce,  I have your email that was forwarded from our previous address. Please note new contact details.

The boat was launched on June 4, in a hurry because  of poor future tides.. Spent the next 2 months commissioning.

Now at Lady Musgrave lagoon and heading to Cairns.

The yacht is well up to expectations and it provides all the security and comfort that we expected

I don't know how to attach photos to email , but when we get to Cairns , you can be sure of copies.

The plan is to stay on the boat for the next 2 years and then to hand over to our Son.  Speak to you soon. Best regards, Bob and Judy Rochester--

~S.V INDIGO PACIFIC~

EURO CATAMARAN 2000
Aluminum construction

Here we see a section of the spacious salon area of the Euro CATAMARAN 2000




EURO CATAMARAN 2000
Aluminum construction

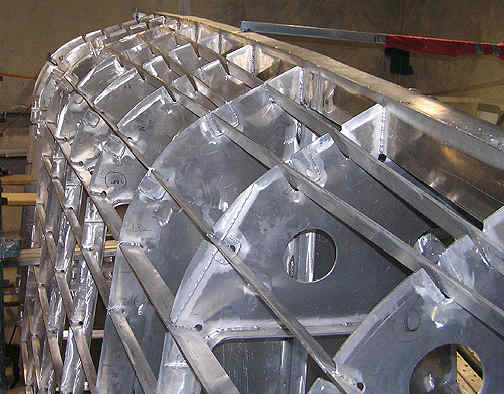

Once all the frames are erected then the stringers can be installed as shown here.
EURO CATAMARAN 2000
Aluminum construction

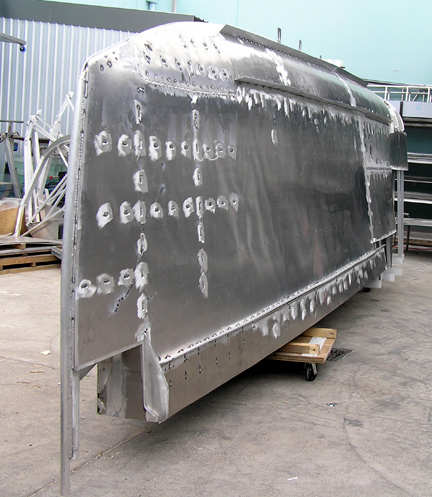

Here one the hulls are completely plated and ready for inverting and attaching to its opposite number.

If you would like to see additional photographs and the complete construction drawings then order the study boat plans as offered at the top of this page.




EURO CATAMARAN 2000
Aluminum construction

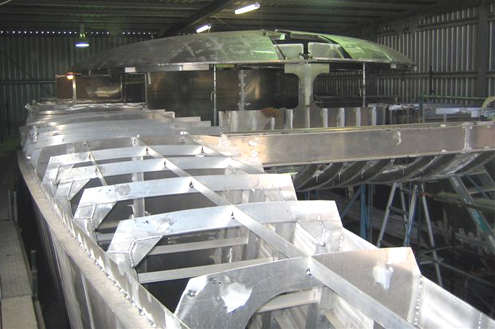

Work progresses as hulls are joined with bridge deck and cabin structure is underway.



New Euro Cats 13m,15m & 17m - Sail plans

New Euro Cats 13m & 15m - Accomodation plans

Euro Cat 1300
ALUMINUM CONSTRUCTION

LOA..........44' - 6" / 13.56 m
LWL.........42'-5" / 12.95 m
BEAM .......22'-11" / 7.00 m
H-BEAM ...4'-9" / 1.45
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 29,950 lbs / 13,585 kg

PLANS & PATTERNS  ALUMINUM CONSTRUCTION.

Euro Cat 1500
 ALUMINUM CONSTRUCTION

LOA..........52'-1" / 16.89 m
LWL.........49'-8" / 15.15 m
BEAM .......25'-6" / 7.78 m
H-BEAM ...5'-3" / 1.60
DRAFT......4'-6" / 1.27 m
DISPLACEMENT 39,464 lbs / 17,900 kg

PLANS & PATTERNS ALUMINUM CONSTRUCTION.
