TRAWLER YACHT 785 STUDY PLANS ... Delivery timing and format are confirmed by Bruce Roberts USA after ordering. plus we will send you a USB Memory stick with many extra drawings and photos. The study plans have lists of materials & equipment etc & these will be useful in costing out the complete boat.



Each STUDY PLAN contains ALL the construction drawings for each material - STEEL as applicable to the particular boat plan - with up to 25 sheets per plan!  Lists of materials - Technical information - Numerous construction drawings are all included.  You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the study plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN BOAT.




 STUDY PLANS PACKAGE & VIDEO OF LAUNCHING



TRAWLER YACHT 785

STEEL  or ALUMINUM

€79.oo

TO ORDER THESE STUDY PLANS

 GO to SPECIALS PAGE, and click on €79.oo BUY NOW button.


L.O.A. 23.90 m 77'    10"
L.W.L. 22.63 m 74'    3"
BEAM 5.53 m 18'    2"
DRAFT (Full displacement version) 1.82m 6'    0"
DISPLACEMENT (varies depending on version) 54,432 kg 120,000 lbs
POWER 250 - 1,100 HP

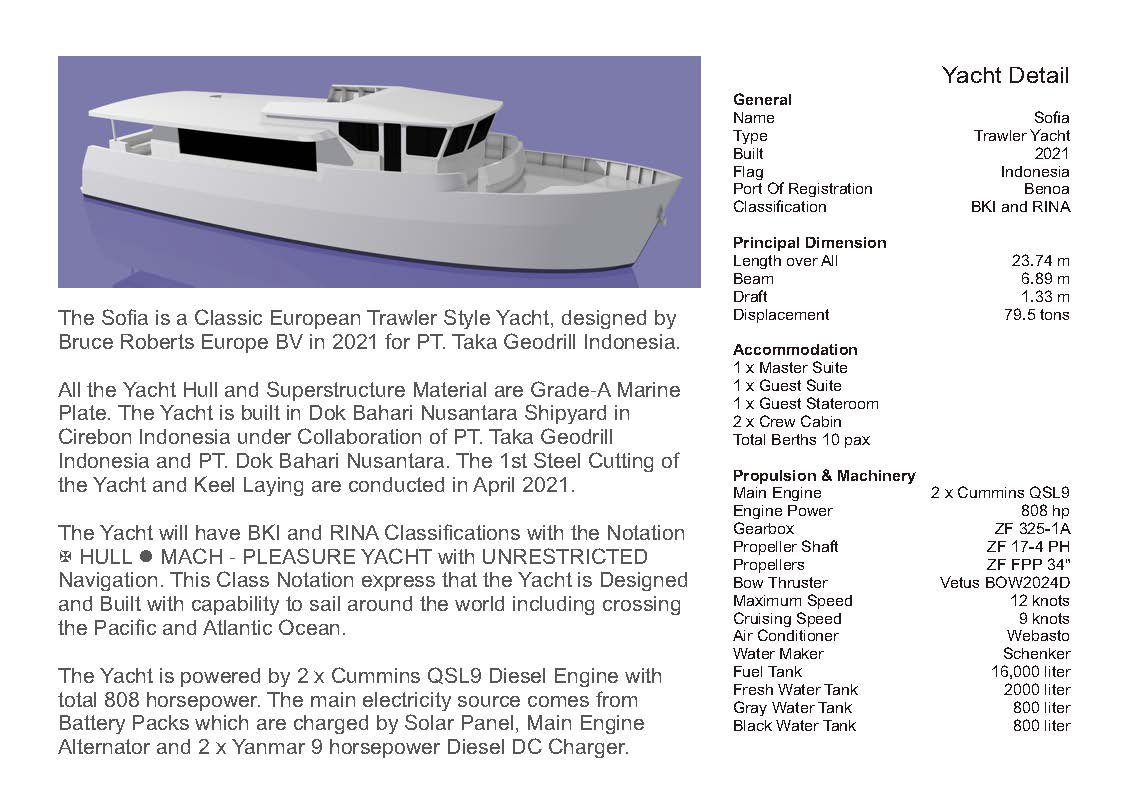

The Sofia is a Classic European Trawler Style Yacht, designed by Bruce Roberts in 2021 for PT. Taka Geodrill Indonesia. All the Yacht Hull and Superstructure Material are Grade-A Marine Plate. The Yacht is built in Dok Bahari Nusantara Shipyard in Cirebon Indonesia under Collaboration of PT. Taka Geodrill Indonesia and PT. Dok Bahari Nusantara. The 1st Steel Cutting of the Yacht and Keel Laying are conducted in April 2021.



The Yacht will have BKI and RINA Classifications with the Notation X HULL l MACH - PLEASURE YACHT with UNRESTRICTED Navigation. This Class Notation express that the Yacht is Designed and Built with capability to sail around the world including crossing the Pacific and Atlantic Ocean. The Yacht is powered by 2 x Cummins QSL9 Diesel Engine with total 808 horsepower. The main electricity source comes from Battery Packs which are charged by Solar Panel, Main Engine Alternator and 2 x Yanmar 9 horsepower Diesel DC Charger.

SPECIAL INTRODUCTORY OFFER: STEEL PLANS & CUTTING FILES... Delivery timing and format are confirmed by Bruce Roberts USA after ordering. The plans have all the information you need to build your own boat..

Each plan contains all the construction drawings for STEEL  construction, plus bonus drawings covering electrical, plumbing and engineering, everything you need to build your boat.

Plus you will receive a DETAIL FOLIO showing how to make many of your own boat fittings, lists of materials and equipment are all included plus all technical information, numerous construction drawings and written building instructions are all included.

You can view & print the drawings in full or in sections. BUILDING PHOTOS are included in the plan package. PLUS you receive a FREE ( VALUE £69.00 ) e-book BUILD YOUR OWN POWER BOAT .. Only available at this price if you order off this page.


TRAWLER YACHT 785



Here we see the top deck and cabin top views.

The Study Plans show VIDEO OF LAUNCHING plus all views of this fine Expedition go anywhere Trawler Yacht.

TRAWLER YACHT 785

The accomodation shown here features crew quarters aft so as to provide direct access to the engine room and to upper decks etc.







TRAWLER YACHT 785

These model views give a good indication of the outer surfaces of this Expedition TY 785
